Exhaust pipe front for BMW 7 Series E32 750i (1989)

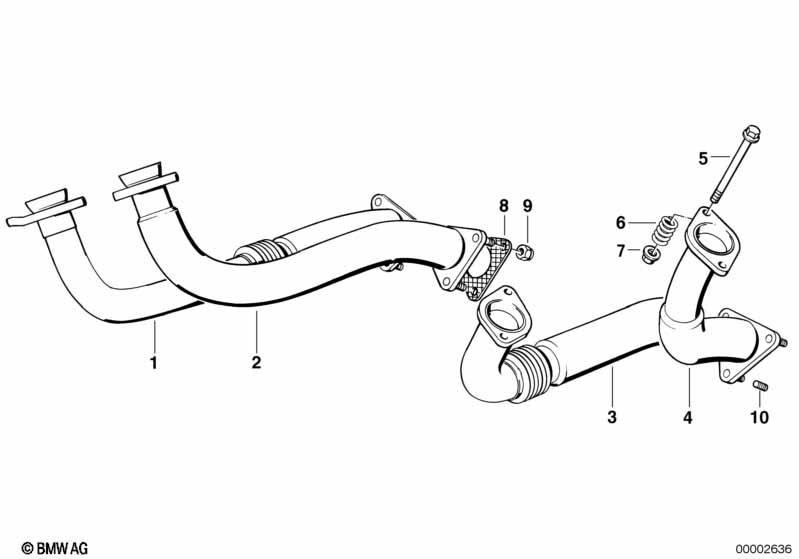

This Exhaust pipe front technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust pipe | ZYL. 1-3 | 1 | 18311716361 | $265.87 | ENDED | Shop at ECS Tuning | |||
| 02 | Exhaust pipe | ZYL. 4-6 | 1 | 18311716362 | $198.13 | Shop at ECS Tuning | ||||
| 03 | Exhaust pipe | ZYL. 7-9 | 1 | 18311716773 | $265.87 | Shop at ECS Tuning | ||||
| 04 | Exhaust pipe | ZYL.10-12 | 1 | 18311716774 | $198.13 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X106MM | 8 | 11621716350 | $6.17 | Shop at ECS Tuning | ||||
| 06 | Compression spring | 8 | 11761716668 | $5.81 | Shop at ECS Tuning | |||||
| 07 | Hex nut wiht flange | M8 | 8 | 18307620549 | Shop at ECS Tuning | |||||
| 08 | Gasket Asbestos Free | 4 | 11761711717 | $18.37 | Shop at ECS Tuning | |||||
| 09 | Hex nut | M10 | X | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 10 | Stud bolt | M10X35 | X | 18311716872 | $19.49 | Shop at ECS Tuning |
