Center muffler for BMW 3 Series E90 LCI 335xi (2011)

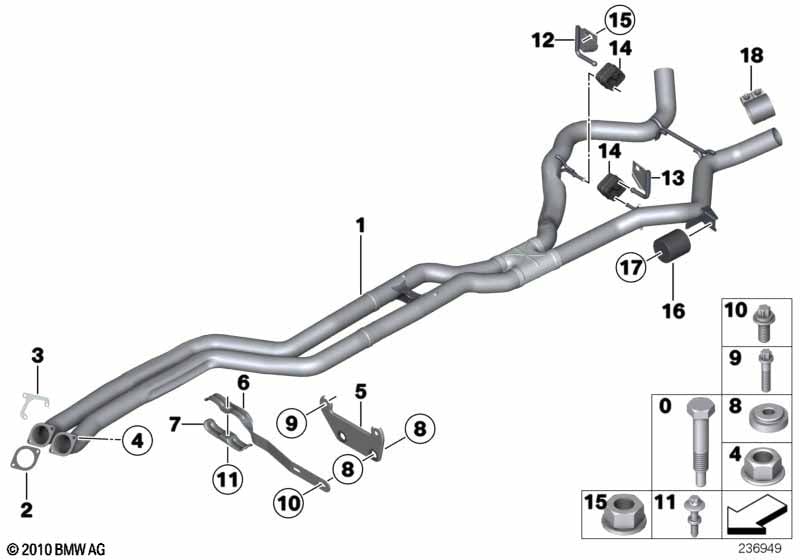

This Center muffler technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 335xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP catalytic converter with X-hose | 1 | 18307604099 | Shop at ECS Tuning | ||||||
| 02 | Flat gasket | 2 | 18307553603 | $18.21 | Shop at ECS Tuning | |||||
| 03 | Flange steady | 1 | 18307597083 | Shop at ECS Tuning | ||||||
| 04 | Hex nut wiht flange | M8 | 4 | 18307620549 | Shop at ECS Tuning | |||||
| 05 | Bracket | 1 | 18207540178 | $28.63 | Shop at ECS Tuning | |||||
| 06 | Bracket, front pipe | 1 | 18207553606 | $26.41 | Shop at ECS Tuning | |||||
| 07 | Clamp | 1 | 18207553607 | $16.07 | Shop at ECS Tuning | |||||
| 08 | Joint sleeve | D=8MM | 4 | 18207546579 | $2.86 | Shop at ECS Tuning | ||||
| 09 | ASA-Bolt | M8X35-8.8-ZNS3 | 2 | 07129903927 | $1.18 | Shop at ECS Tuning | ||||
| 10 | ASA-Bolt | M8X20-U1-8.8 | 2 | 07129904559 | $0.71 | Shop at ECS Tuning | ||||
| 11 | Torx screw with collar | M8X49 | 1 | 18207544250 | $4.20 | Shop at ECS Tuning | ||||
| 12 | Holder | 1 | 18207571001 | $17.29 | Shop at ECS Tuning | |||||
| 13 | Holder | 1 | 18207571002 | $17.29 | Shop at ECS Tuning | |||||
| 14 | Rubber Mounting | 2 | 18207590154 | Shop at ECS Tuning | ||||||
| 15 | Hex nut | M12X1,5ZNNIV SI | 2 | 07129904866 | $1.85 | Shop at ECS Tuning | ||||
| 16 | Vibration absorber | 35HZ | 1 | 18307793014 | $54.00 | Shop at ECS Tuning | ||||
| 17 | Collar screw | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 18 | Clamping bush | D=60 X 70MM | 2 | 18307560779 | $34.61 | Shop at ECS Tuning |
