Catalytic converter/front silencer for BMW 2 Series F22 228iX (2016)

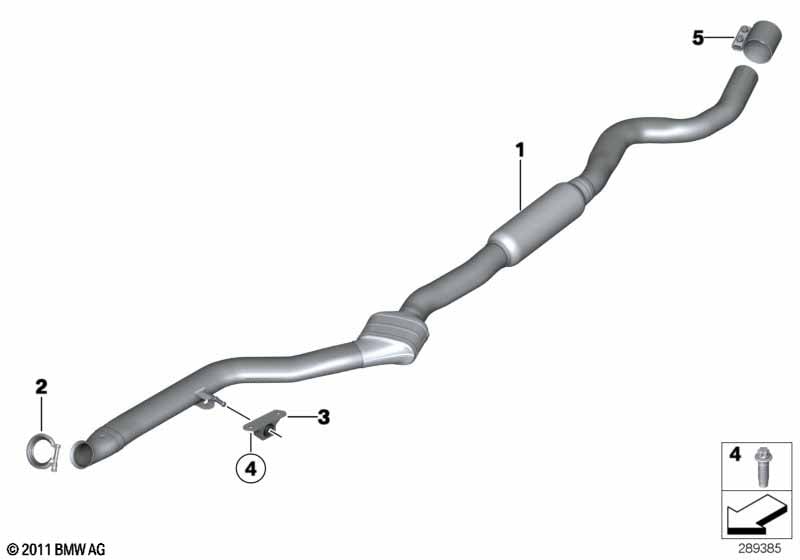

This Catalytic converter/front silencer technical drawing provides a detailed breakdown of the assembly for the 2 Series F22 228iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP catalytic converter w.center silencer | 1 | 18308606740 | Shop at ECS Tuning | ||||||
| 02 | Muffler clamp | D=65MM | 1 | 18307628660 | Shop at ECS Tuning | |||||
| 03 | Holder catalytic converter near engine | AWD | 1 | 18307633093 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M8X25 | 2 | 18309909376 | Shop at ECS Tuning | |||||
| 05 | Clamping bush | D=75 X 90MM | 1 | 18307560781 | $152.42 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F22 228iX Catalytic converter/front silencer?
- This technical diagram illustrates the Catalytic converter/front silencer within the Exhaust system group for the 2 Series F22 228iX produced during 2016. It provides a detailed exploded view of the components, identifying key parts such as the RP catalytic converter w.center silencer (Part #18308606740).
- Which models use the hardware listed in this Catalytic converter/front silencer?
- The hardware and components featured in the Catalytic converter/front silencer are specific to the 2 Series F22 228iX produced during 2016. These technical specifications ensure that parts like the RP catalytic converter w.center silencer (18308606740) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Catalytic converter/front silencer assembly?
- Each item in the Catalytic converter/front silencer corresponds to the numbered list below the illustration. For the 2 Series F22 228iX, you can identify the RP catalytic converter w.center silencer by locating its position on the schematic, which then links to the official BMW part number 18308606740 for the Exhaust system section.
