Repair kit for flexible tube for BMW 3 Series E46 318d (2005)

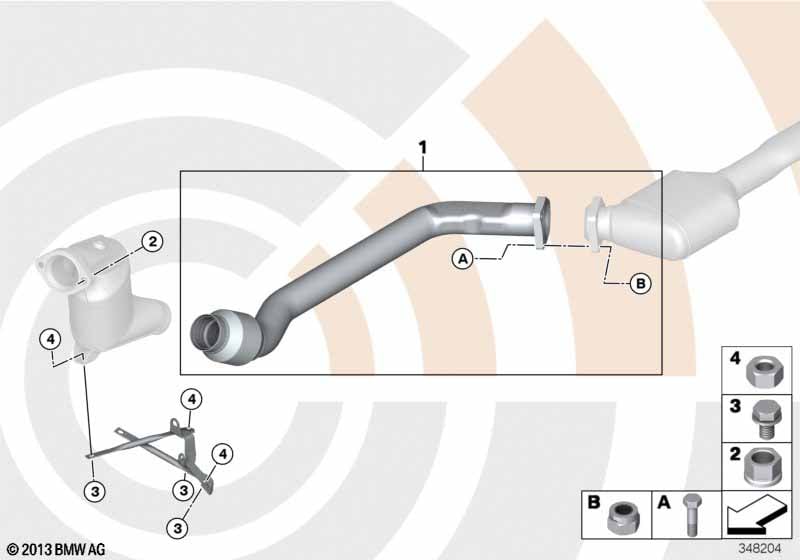

This Repair kit for flexible tube technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Please observe Repair Manual. | ||||||||||
| 01 | Repair kit for flex element | VALUE PARTS | 1 | 18312356512 | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| -- | Retrofit particle filter E46-M47 | E46-M47 EURO3 | X | 18100413056 | ENDED | Shop at ECS Tuning | ||||
| -- | Retrofit particle filter | E46-M47 | X | 18100413058 | Shop at ECS Tuning | |||||
| For vehicles with EU4 exhaust emissions standard and Automatic transmission Please observe Repair Manual. |
S167A=Yes S205A=No |
|||||||||
| 01 | Repair kit for flex element | VALUE PARTS | 1 | 03/2004 | 18312356512 | Shop at ECS Tuning | ||||
| not suitable for | ||||||||||
| -- | Retrofit particle filter E46-M47 | E46-M47 EURO3 | X | 03/2004 | 18100413056 | ENDED | Shop at ECS Tuning | |||
| -- | Retrofit particle filter | E46-M47 | X | 03/2004 | 18100413058 | Shop at ECS Tuning | ||||
| 02 | Hex nut | M10 | 2 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X14 ZNNIV SI | 2 | 07119905527 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
