Exhaust system, rear for BMW 5 Series F10 LCI 520dX (2016)

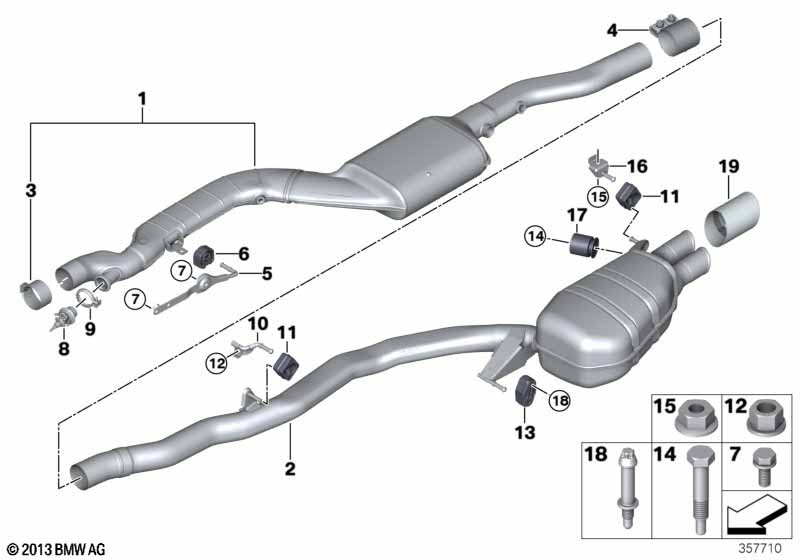

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP SCR catalytic converter | EU6 | 1 | 18308573226 | Shop at ECS Tuning | |||||
| 02 | Rear muffler | 1 | 18308583455 | Shop at ECS Tuning | ||||||
| 03 | Muffler clamp | D=63,8 X 37MM | 1 | 18308632361 | Shop at ECS Tuning | |||||
| 04 | Clamping bush | D=70 X 70MM | 1 | 18307560780 | $60.54 | Shop at ECS Tuning | ||||
| 05 | Gearbox support | 1 | 18208576348 | Shop at ECS Tuning | ||||||
| 06 | Rubber Mounting | 1 | 18208576349 | Shop at ECS Tuning | ||||||
| 07 | Hex bolt with washer | M8X20-U1-8.8 | 2 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| 08 | Metering unit | 1 | 18308514448 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Fastening set, gasket | 1 | 18308578628 | Shop at ECS Tuning | ||||||
| 09 | Fastening set, gasket | 1 | 18308578628 | Shop at ECS Tuning | ||||||
| 10 | Holding strap left | 1 | 18308519497 | Shop at ECS Tuning | ||||||
| 11 | Rubber Mounting | 2 | 18207578238 | $16.30 | Shop at ECS Tuning | |||||
| 12 | Hex nut | M12X1,5ZNNIV SI | 1 | 07129904866 | $1.85 | Shop at ECS Tuning | ||||
| 13 | Rubber Mounting | 1 | 18207578238 | $16.30 | Shop at ECS Tuning | |||||
| 14 | Collar screw | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 15 | Collar nut | M8-8-SC-ZNNIV | 3 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 16 | REAR SILENCER BRACKET, rear | 1 | 18307812409 | Shop at ECS Tuning | ||||||
| 17 | Vibration absorber | 32 HZ | 1 | 18303413587 | $54.00 | Shop at ECS Tuning | ||||
| 18 | Torx screw with collar | M8X55 | 1 | 18307591467 | Shop at ECS Tuning | |||||
| For vehicles with Modern Line |
P7S1A=Yes |
|||||||||
| 19 | Tailpipe end piece, alu-look | 2 | 18308605518 | Shop at ECS Tuning | ||||||
| For vehicles with Sports package or M Sports package |
P336A=Yes P337A=Yes |
|||||||||
| 19 | Tailpipe tip, black chrome | 2 | 18308511729 | Shop at ECS Tuning | ||||||
| For vehicles with Sports package and M Sports package and Modern Line |
P336A=No P337A=No P7S1A=No |
|||||||||
| 19 | Tailpipe tip, chrome | 2 | 18307823928 | Shop at ECS Tuning | ||||||
