SCR metering module / mounted parts for BMW 2 Series F22 LCI 220dX (2020)

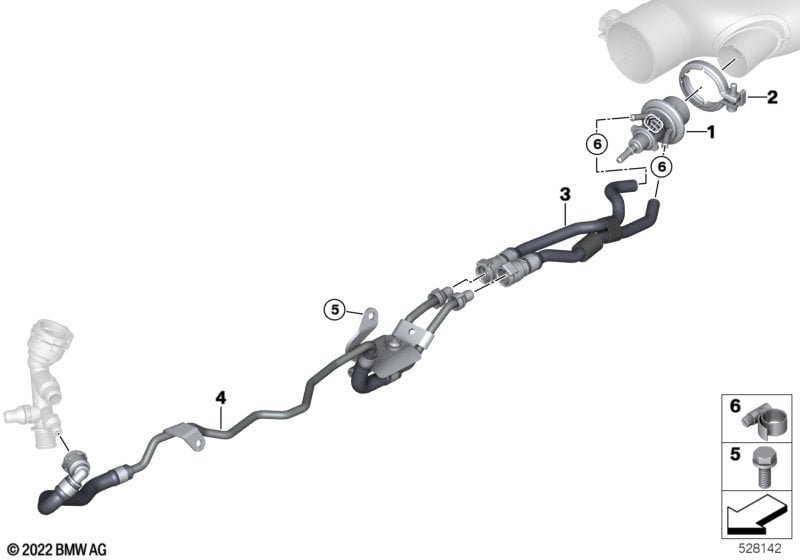

This SCR metering module / mounted parts technical drawing provides a detailed breakdown of the assembly for the 2 Series F22 LCI 220dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Emissions standard EU5 and EU3 exhaust emissions standard |
S161A=No S169A=No |
|||||||||
| 01 | Metering unit | 1 | 03/2018 | 18308514448 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Fastening set, gasket | 1 | 03/2018 | 18308578628 | Shop at ECS Tuning | |||||
| 02 | Fastening set, gasket | 1 | 03/2018 | 18308578628 | Shop at ECS Tuning | |||||
| 03 | Line for metering module supply/return | 1 | 03/2018 | 17128473962 | Shop at ECS Tuning | |||||
| 04 | Line from SCR metering module-water pump | 1 | 03/2018 | 11538473963 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 03/2018 | 07119904524 | $0.25 | Shop at ECS Tuning | |||
| 06 | Hose clamp | L12-15 | 1 | 03/2018 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
