Engine-side catalytic converter for BMW MINI Clubman F54 Cooper (2019)

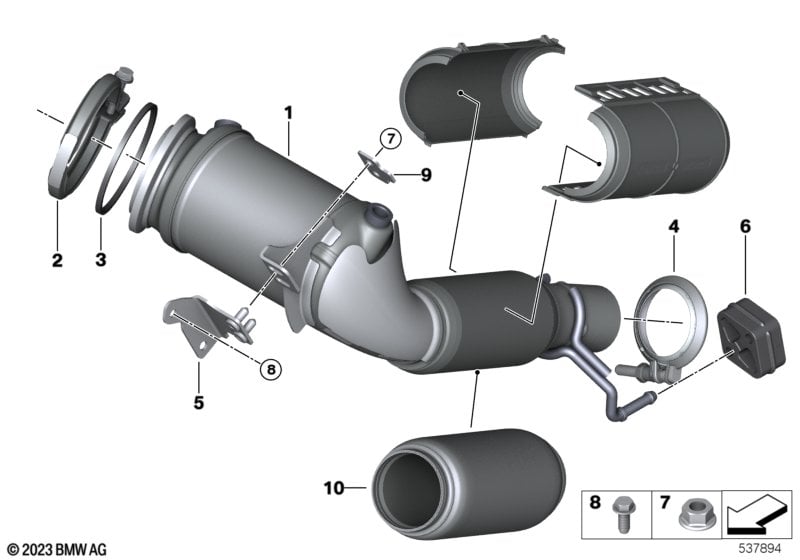

This Engine-side catalytic converter technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP catalytic conv.close to the engine | 1 | 18327634628 | Shop at ECS Tuning | ||||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 01 | RP catalytic conv.close to the engine | 1 | 18327634629 | Shop at ECS Tuning | ||||||
| For vehicles with Emissions standard EU6 rde II |
S1DFA=No |
|||||||||
| 02 | Screw clamp | 1 | 18307606136 | Shop at ECS Tuning | ||||||
| 03 | Gasket ring | 1 | 18307581970 | Shop at ECS Tuning | ||||||
| 04 | Muffler clamp | D=63,8 X 37MM | 1 | 18308632361 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Emissions standard EU5 and Hot-climate version |
L8AAA=Yes S161A=No S823A=Yes |
|||||||||
| 04 | Screw clamp | 1 | 18308616158 | ENDED | Shop at ECS Tuning | |||||
| 04 | Screw clamp | 1 | 18305A04BD5 | Shop at ECS Tuning | ||||||
| 05 | Holder catalytic converter near engine | 1 | 18327642258 | Shop at ECS Tuning | ||||||
| For vehicles with Emissions standard EU6 rde II |
S1DFA=No |
|||||||||
| 06 | Rubber Mounting | 2 | 18207589931 | $16.30 | Shop at ECS Tuning | |||||
| 07 | Hex nut | M8 | 2 | 18307525607 | $1.62 | Shop at ECS Tuning | ||||
| For vehicles with Emissions standard EU6 rde II |
S1DFA=No |
|||||||||
| 08 | Hex bolt with washer | M8X20-U1-8.8 | 2 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| 09 | Reinforcement plate | 1 | 18327555624 | Shop at ECS Tuning | ||||||
| "Attention! The decoupling element may be offered only after the warranty period (in Europe 36 months and in the United States 60 months) of the vehicle." Observe repair manual. Replace add-on parts and seals! |
||||||||||
| 10 | Decoupling element | VALUE PART | 1 | 18305B32FB7 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
