Catalyser/Diesel particulate filter for BMW 3 Series F34 GT LCI 318d (2018)

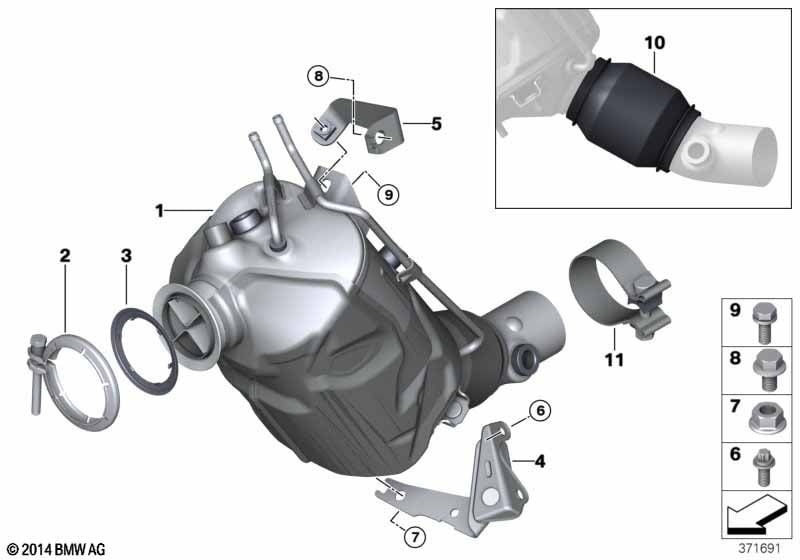

This Catalyser/Diesel particulate filter technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT LCI 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP diesel particulate filter | RDE SCR | 1 | 07/2018 | 18308583452 | Shop at ECS Tuning | ||||
| For vehicles with Emissions standard EU5 |
S161A=Yes |
|||||||||
| 01 | RP diesel particulate filter | EU5 | 1 | 03/2016 | 18308589812 | Shop at ECS Tuning | ||||
| For vehicles with EU3 exhaust emissions standard |
S169A=Yes |
|||||||||
| 01 | RP catalytic conv.close to the engine | 1 | 18308518894 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw clamp | 1 | 18308512137 | Shop at ECS Tuning | ||||||
| -- | Gasket | 1 | 18308513651 | Shop at ECS Tuning | ||||||
| For vehicles with Emissions standard EU5 and Emissions standard EU6 and EU3 exhaust emissions standard and Exhaust emission standards EU6 RDE |
S161A=No S164A=No S169A=No S1DEA=No |
|||||||||
| 01 | RP diesel particulate filter | EU6 | 1 | 18308513960 | Shop at ECS Tuning | |||||
| 02 | Screw clamp | 1 | 18308512137 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Gasket | 1 | 18308513651 | Shop at ECS Tuning | ||||||
| 03 | Gasket | 1 | 18308513651 | Shop at ECS Tuning | ||||||
| 04 | Holder catalytic converter near engine | 1 | 18208572331 | Shop at ECS Tuning | ||||||
| 05 | Rod | 1 | 18207823511 | Shop at ECS Tuning | ||||||
| 06 | ASA-Bolt | M8X20-U1-8.8 | 2 | 07129904559 | $0.71 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M8-ZNS3 | 2 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M8 | 2 | 18307525607 | $1.62 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M12X20 | 1 | 07119904488 | $3.02 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M8X20-U1-8.8 | 1 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| 10 | Decoupling element | VALUE PARTS | 1 | 18308589078 | Shop at ECS Tuning | |||||
| "Attention! The decoupling element may be offered only after the warranty period (in Europe 36 months and in the United States 60 months) of the vehicle." |
||||||||||
| 11 | Muffler clamp | D=63,2 X 37MM | 1 | 18308581218 | Shop at ECS Tuning | |||||
| 11 | Muffler clamp | D=65,2 X 37MM | 1 | 18308473736 | Shop at ECS Tuning | |||||
