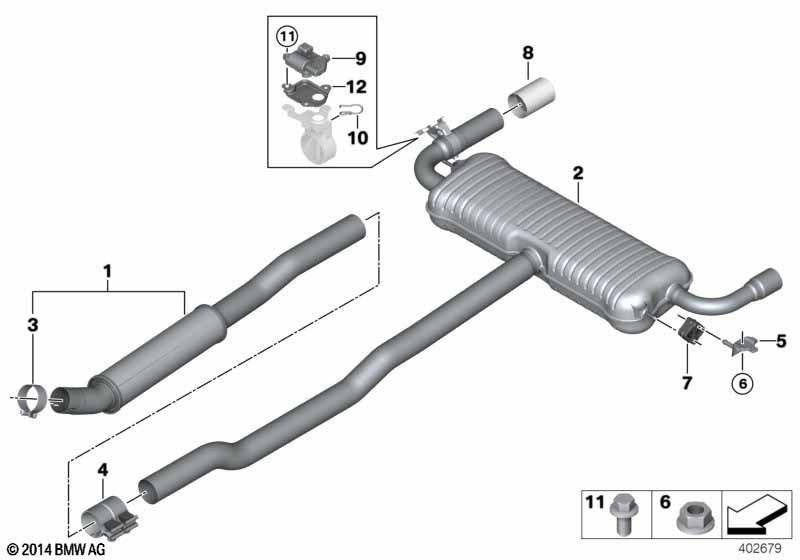

Exhaust system, rear for BMW 2 Series F45 Active Tourer LCI 220i (2021)
This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Exhaust emission standards EU6 RDE |
S1DEA=Yes |
|||||||||
| 01 | RP gas.particulate filter w.front pipe | 1 | 07/2019 | 18309454313 | Shop at ECS Tuning | |||||
| For vehicles with Emissions standard EU6 rde II |
S1DFA=Yes |
|||||||||
| 01 | RP gas.particulate filter w.front pipe | RDE II | 1 | 18309845200 | Shop at ECS Tuning | |||||
| For vehicles with Exhaust emission standards EU6 RDE and Emissions standard EU6 rde II |
S1DEA=No S1DFA=No |
|||||||||
| 01 | Front muffler | 1 | 18308627213 | Shop at ECS Tuning | ||||||
| 02 | Rear muffler | 1 | 18308627263 | Shop at ECS Tuning | ||||||
| 03 | Muffler clamp | D=72 X 37MM | 1 | 18308632362 | Shop at ECS Tuning | |||||
| For vehicles with Exhaust emission standards EU6 RDE or Emissions standard EU6 rde II |
S1DEA=Yes S1DFA=Yes |
|||||||||
| 03 | Screw clamp | D=70MM | 1 | 03/2018 | 18305A04BD6 | Shop at ECS Tuning | ||||
| 04 | Clamping bush | D=65 X 70MM | 1 | 18307536426 | $50.38 | Shop at ECS Tuning | ||||
| 05 | Bracket for exhaust system | 2 | 18308617370 | Shop at ECS Tuning | ||||||
| 06 | Hex nut | M8-ZNS3 | 2 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Rubber Mounting | 2 | 18307616850 | Shop at ECS Tuning | ||||||
| 08 | Exhaust pipe tip, high-gloss chrome | 2 | 18308682297 | Shop at ECS Tuning | ||||||
