Engine-side catalytic converter for BMW 3 Series F30 LCI 320i (2016)

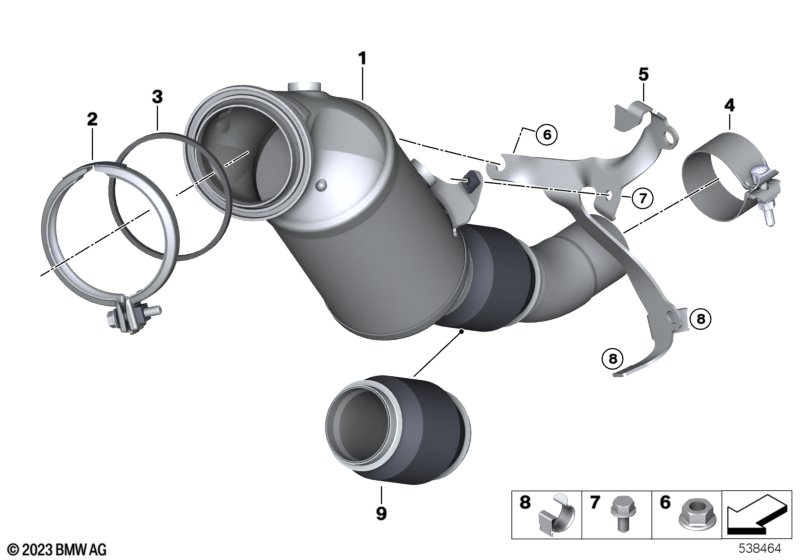

This Engine-side catalytic converter technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP catalytic conv.close to the engine | 1 | 18328630246 | Shop at ECS Tuning | ||||||
| 02 | Screw clamp | 1 | 18307606136 | Shop at ECS Tuning | ||||||
| 03 | Gasket ring | 1 | 18307581970 | Shop at ECS Tuning | ||||||
| 04 | Muffler clamp | D=80,0 X 37MM | 1 | 03/2024 | 18308623284 | Shop at ECS Tuning | ||||
| 04 | Muffler clamp | D=80,0X37MM | 1 | 18305A78B15 | Shop at ECS Tuning | |||||
| For vehicles with Exhaust emission standards EU6 RDE or Emissions standard EU6 rde II |
S1DEA=Yes S1DFA=Yes |
|||||||||
| 04 | Screw clamp | D=80,0MM | 1 | 18305A09B63 | Shop at ECS Tuning | |||||
| 05 | Holder catalytic converter near engine | 1 | 18328648410 | Shop at ECS Tuning | ||||||
| 06 | Hex nut | M8 | 1 | 18307525607 | $1.62 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M8X20-U1-8.8 | 1 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| 08 | Cable clamp | D=19-24/B=5 | 2 | 11787548951 | $1.12 | Shop at ECS Tuning | ||||
| "Attention! The decoupling element may be offered only after the warranty period (in Europe 36 months and in the United States 60 months) of the vehicle." Observe repair manual. Replace add-on parts and seals! |
||||||||||
| 09 | Decoupling element | VALUE PARTS | 1 | 18305B331F9 | Shop at ECS Tuning | |||||
