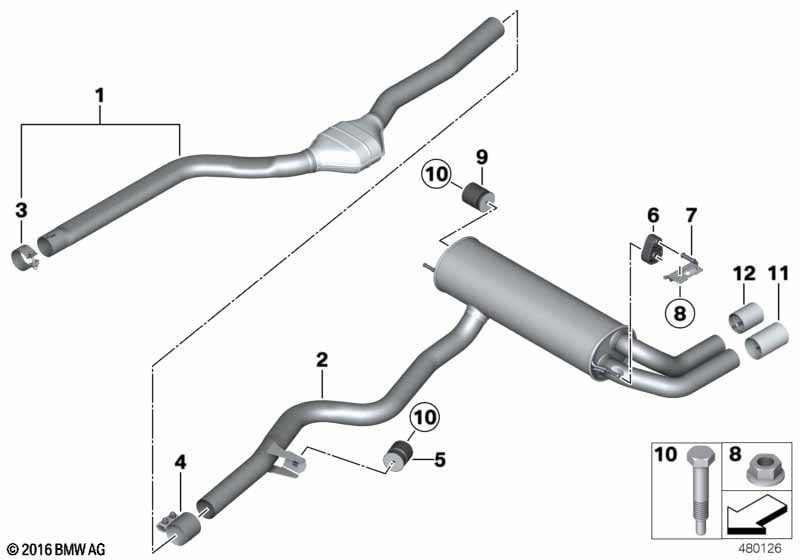

Exhaust system, rear for BMW 4 Series F32 LCI 425d (2016)
This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 LCI 425d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Attention! For motor vehicles with production date till 12/16, observe PuMA measure 62893012. |
||||||||||
| 01 | RP catalytic converter | EU6 | 1 | 18308578113 | Shop at ECS Tuning | |||||
| For vehicles with Emissions standard EU5 |
S161A=Yes |
|||||||||
| 01 | Front pipe | EU5 | 1 | 18308578080 | Shop at ECS Tuning | |||||
| 02 | Rear muffler | 1 | 18308597044 | Shop at ECS Tuning | ||||||
| 03 | Muffler clamp | D=63,2 X 37MM | 1 | 18308581218 | Shop at ECS Tuning | |||||
| 04 | Clamping bush | D=65 X 70MM | 1 | 18307536426 | $50.38 | Shop at ECS Tuning | ||||
| 05 | Vibration absorber | 35HZ | 1 | 18307793014 | $54.00 | Shop at ECS Tuning | ||||
| 06 | Rubber Mounting | 2 | 18208577081 | Shop at ECS Tuning | ||||||
| 07 | Bracket, rear muffler right | 1 | 18308516521 | Shop at ECS Tuning | ||||||
| 07 | Bracket for rear silencer, left | 1 | 18308516522 | Shop at ECS Tuning | ||||||
| 08 | Hex nut | M8-ZNS3 | 2 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 10 | Collar screw | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| For vehicles with Sport Line |
P7ACA=No |
|||||||||
| 11 | Tailpipe tip, chrome | 1 | 18307610634 | +core | Shop at ECS Tuning | |||||
| For vehicles with Sport Line or Sport Line or M Sport |
P7ACA=Yes P7B1A=Yes P7B3A=Yes |
|||||||||
| 11 | Tailpipe tip, black chrome | 1 | 18307610636 | +core | Shop at ECS Tuning | |||||
| For vehicles with Sport Line |
P7ACA=No |
|||||||||
| 12 | Tailpipe tip, chrome | 1 | 18307610634 | +core | Shop at ECS Tuning | |||||
| For vehicles with Sport Line or Sport Line |
P7ACA=Yes P7B1A=Yes |
|||||||||
| 12 | Tailpipe tip, black chrome | 1 | 18307610636 | +core | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
