Engine-side catalytic converter for BMW 4 Series F32 LCI 440iX (2020)

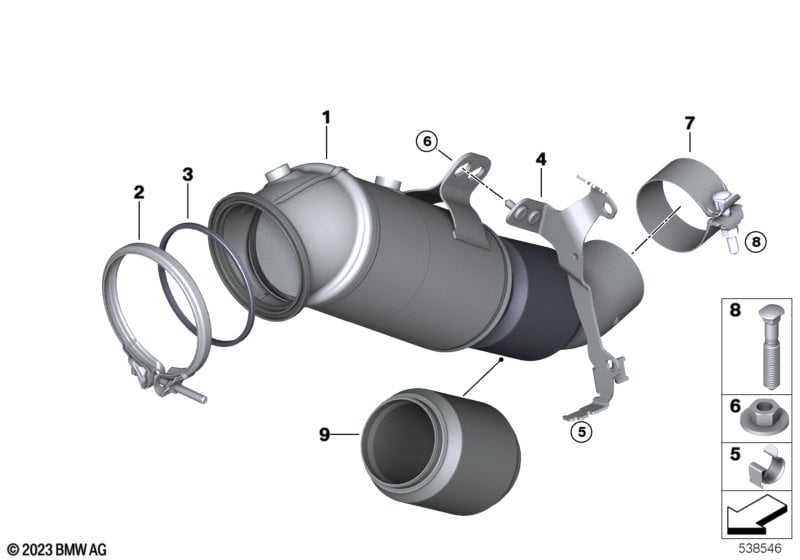

This Engine-side catalytic converter technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 LCI 440iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 01 | RP catalytic conv.close to the engine | EU6 | 1 | 18328631625 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 01 | RP catalytic conv.close to the engine | EU6 | 1 | 18327643152 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Exhaust emission standards EU6 RDE |
L8AAA=No S1DEA=Yes |
|||||||||
| 01 | RP catalytic conv.close to the engine | EU6 | 1 | 07/2018 | 18328684788 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Exhaust emission standards EU6 RDE |
L8AAA=Yes S1DEA=No |
|||||||||
| 01 | RP catalytic conv.close to the engine | EU6 | 1 | 07/2018 | 18328631625 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Exhaust emission standards EU6 RDE |
L8AAA=No S1DEA=No |
|||||||||
| 01 | RP catalytic conv.close to the engine | EU6 | 1 | 07/2018 | 18327643152 | Shop at ECS Tuning | ||||
| 02 | Screw clamp | D=135MM | 1 | 18328612537 | Shop at ECS Tuning | |||||
| 03 | Gasket ring | 1 | 18328612538 | Shop at ECS Tuning | ||||||
| 04 | Holder catalytic converter near engine | 1 | 18328648236 | Shop at ECS Tuning | ||||||
| 05 | Cable clamp | D=19-24/B=5 | 1 | 11787548951 | $1.12 | Shop at ECS Tuning | ||||
| 06 | Hex nut | BM8-8-ZNS3 | 2 | 07129905095 | Shop at ECS Tuning | |||||
| For vehicles with Exhaust emission standards EU6 RDE |
S1DEA=Yes |
|||||||||
| 07 | Muffler clamp | D=80,0 X 31,8MM | 1 | 07/2018 | 18309884107 | Shop at ECS Tuning | ||||
| For vehicles with Exhaust emission standards EU6 RDE |
S1DEA=No |
|||||||||
| 07 | Muffler clamp | D=80,0 X 37MM | 1 | 07/2018 | 18308635798 | Shop at ECS Tuning | ||||
| 08 | Repair kit screws | 1 | 18307620661 | Shop at ECS Tuning | ||||||
| For vehicles with National version China "Attention! The decoupling element may be offered only after the warranty period (in Europe 36 months and in the United States 60 months) of the vehicle." Observe repair manual. Replace add-on parts and seals! |
L8AAA=Yes |
|||||||||
| 09 | Decoupling element | VALUE PART | 1 | 18305B32F08 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Exhaust emission standards EU6 RDE "Attention! The decoupling element may be offered only after the warranty period (in Europe 36 months and in the United States 60 months) of the vehicle." Observe repair manual. Replace add-on parts and seals! |
L8AAA=No S1DEA=Yes |
|||||||||
| 09 | Decoupling element | VALUE PART | 1 | 07/2018 | 18305B32F08 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Exhaust emission standards EU6 RDE "Attention! The decoupling element may be offered only after the warranty period (in Europe 36 months and in the United States 60 months) of the vehicle." Observe repair manual. Replace add-on parts and seals! |
L8AAA=Yes S1DEA=No |
|||||||||
| 09 | Decoupling element | VALUE PART | 1 | 07/2018 | 18305B32F08 | Shop at ECS Tuning | ||||
