Engine-side catalytic converter for BMW 2 Series F44 Gran Coupé 220i (2024)

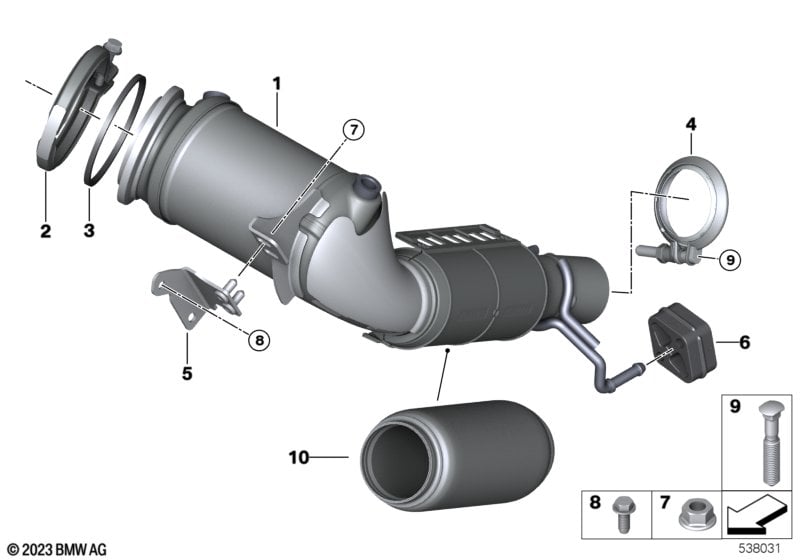

This Engine-side catalytic converter technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP catalytic conv.close to the engine | 1 | 18328654549 | Shop at ECS Tuning | ||||||
| 02 | Screw clamp | 1 | 18307606136 | Shop at ECS Tuning | ||||||
| 03 | Gasket ring | 1 | 18307581970 | Shop at ECS Tuning | ||||||
| 04 | Screw clamp | D=70MM | 1 | 18305A04BD6 | Shop at ECS Tuning | |||||
| 05 | Holder catalytic converter near engine | 1 | 18328484348 | Shop at ECS Tuning | ||||||
| 06 | Rubber Mounting | 2 | 18208570671 | Shop at ECS Tuning | ||||||
| 07 | Hex nut | BM8-8-ZNS3 | 2 | 07129905095 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M8X20-U1-8.8 | 2 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| "Attention! The decoupling element may be offered only after the warranty period (in Europe 36 months and in the United States 60 months) of the vehicle." Observe repair manual. Replace add-on parts and seals! |
||||||||||
| 09 | Decoupling element | VALUE PART | 1 | 18305B32F85 | Shop at ECS Tuning | |||||
