Exhaust system, rear for BMW 7 Series G11 740e (2019)

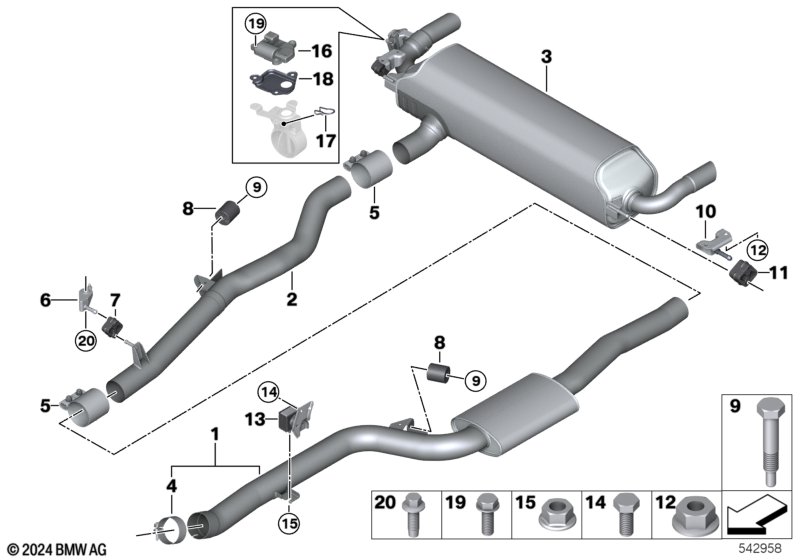

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 740e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Exhaust emission standards EU6 RDE |
S1DEA=No |
|||||||||
| 01 | Front muffler | 1 | 07/2018 | 18308637980 | Shop at ECS Tuning | |||||
| For vehicles with Exhaust emission standards EU6 RDE |
S1DEA=Yes |
|||||||||
| 01 | RP gas.particulate filter w.front pipe | 1 | 07/2018 | 18309798945 | Shop at ECS Tuning | |||||
| For vehicles with Exhaust emission standards EU6 RDE |
S1DEA=No |
|||||||||
| 02 | Intermediate pipe | 1 | 07/2018 | 18308637981 | Shop at ECS Tuning | |||||
| For vehicles with Exhaust emission standards EU6 RDE |
S1DEA=Yes |
|||||||||
| 02 | Intermediate pipe | EU6 RDE | 1 | 07/2018 | 18308698922 | Shop at ECS Tuning | ||||
| 03 | Rear muffler with exhaust flap | 1 | 18308637733 | Shop at ECS Tuning | ||||||
| 04 | Muffler clamp | D=80,0 X 37MM | 1 | 03/2024 | 18308623284 | Shop at ECS Tuning | ||||
| 04 | Muffler clamp | D=80,0X37MM | 1 | 18305A78B15 | Shop at ECS Tuning | |||||
| For vehicles with Exhaust emission standards EU6 RDE |
S1DEA=Yes |
|||||||||
| 04 | Muffler clamp | D=80,0 X 37MM | 1 | 03/2019 | 18308623284 | Shop at ECS Tuning | ||||
| 04 | Muffler clamp | D=80,0 X 31,8MM | 1 | 03/2019 | 18305A049C5 | Shop at ECS Tuning | ||||
| For vehicles with Exhaust emission standards EU6 RDE |
S1DEA=No |
|||||||||
| 05 | Clamping bush | D=75 X 90MM | 2 | 07/2018 | 18307560781 | $152.42 | Shop at ECS Tuning | |||
| For vehicles with Exhaust emission standards EU6 RDE |
S1DEA=Yes |
|||||||||
| 05 | Clamping bush | D=85 X 90MM | 2 | 07/2018 | 18307560782 | $113.93 | Shop at ECS Tuning | |||
| 08 | Vibration absorber | 32HZ | 1 | 18308576453 | Shop at ECS Tuning | |||||
| 09 | Collar screw | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 10 | REAR SILENCER BRACKET, front | 2 | 18308635586 | Shop at ECS Tuning | ||||||
| 11 | Swing support | 2 | 18308635587 | Shop at ECS Tuning | ||||||
| 12 | Hex nut | M8-ZNS3 | 4 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 13 | Transmission holder | 1 | 18208683823 | Shop at ECS Tuning | ||||||
| 14 | Hex bolt with washer | M8X18-U1-8.8 | 2 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 15 | Hex nut | M8 | 1 | 18307525607 | $1.62 | Shop at ECS Tuning | ||||
| 16 | Actuator drive, exhaust flap | 1 | 18308623424 | Shop at ECS Tuning | ||||||
| 17 | Fixing bow | 1 | 18307620323 | Shop at ECS Tuning | ||||||
| 18 | Thermal protection | 1 | 18307628041 | Shop at ECS Tuning | ||||||
| 19 | Hex bolt | M6X16 | 3 | 18308623584 | Shop at ECS Tuning | |||||
| 20 | Hex bolt | M8X25 | 1 | 18309909376 | Shop at ECS Tuning | |||||
