Catalytic converter/front silencer for BMW 7 Series G11 750dX (2019)

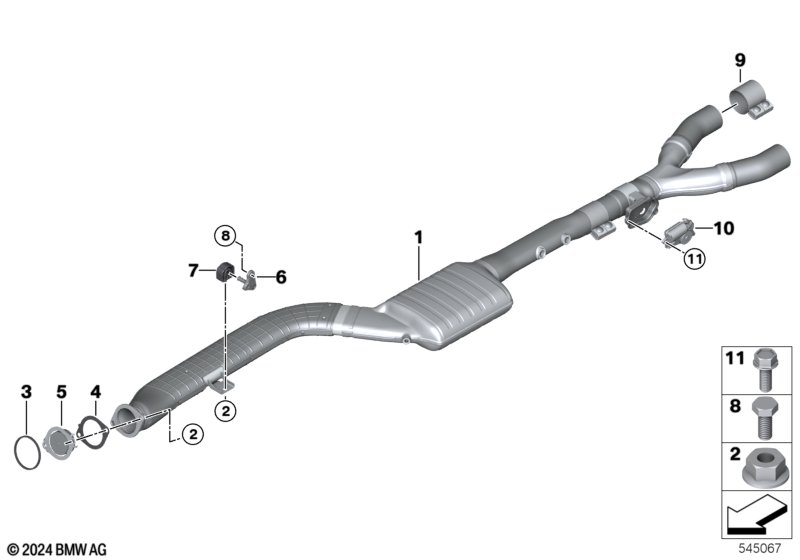

This Catalytic converter/front silencer technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 750dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP SCR catalytic converter | EU6 | 1 | 18308585872 | Shop at ECS Tuning | |||||
| 01 | RP SCR catalytic converter | EU6 | 1 | 18307102496 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Emissions standard EU5 |
S161A=Yes |
|||||||||
| 01 | RP catalytic converter w.front silencer | EU5 | 1 | 18308589073 | Shop at ECS Tuning | |||||
| 01 | RP catalytic converter w.front silencer | EU5 | 1 | 18307102498 | NoS | Shop at ECS Tuning | ||||
| 02 | Collar nut | M8-8-SC-ZNNIV | 3 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 03 | Gasket | 1 | 18308589090 | Shop at ECS Tuning | ||||||
| 04 | Flat gasket | D=89MM | 1 | 18308585871 | Shop at ECS Tuning | |||||
| For vehicles with Emissions standard EU5 |
S161A=No |
|||||||||
| 05 | Mixer | D=82MM | 1 | 18308585870 | Shop at ECS Tuning | |||||
| 06 | Transmission holder | 1 | 18208582034 | Shop at ECS Tuning | ||||||
| 07 | Rubber Mounting | 1 | 18208599519 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt with washer | M8X18-U1-8.8 | 2 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 09 | Clamping bush | D=75 X 90MM | 2 | 18307560781 | $152.42 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
