Exhaust system, rear for BMW 5 Series G30 520d (2019)

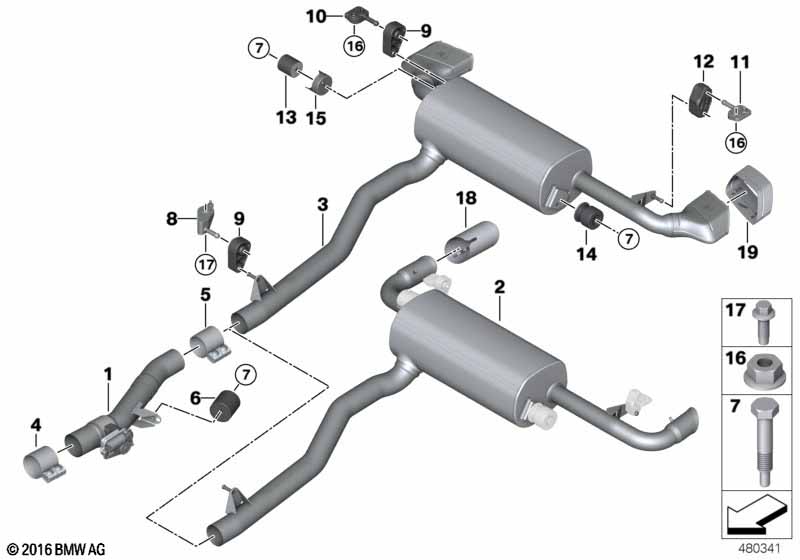

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Emissions standard EU5 and EU3 exhaust emissions standard |
S161A=No S169A=No |
|||||||||
| 01 | LP exhaust gas flap with cross pipe | EU6 | 1 | 18308587843 | ENDED | Shop at ECS Tuning | ||||
| 01 | LP exhaust gas flap with cross pipe | EU6 | 1 | 18307102494 | Shop at ECS Tuning | |||||
| For vehicles with Emissions standard EU6 and EU3 exhaust emissions standard |
S164A=No S169A=No |
|||||||||
| 01 | LP exhaust gas flap with cross pipe | EU5 | 1 | 18307925843 | Shop at ECS Tuning | |||||
| 01 | LP exhaust gas flap with cross pipe | EU5 | 1 | 18307102489 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package |
P337A=No |
|||||||||
| 02 | Rear muffler | 1 | 18309887665 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package Note Repair Manual |
P337A=No |
|||||||||
| 02 | Rear muffler | 1 | 11/2019 | 18308587844 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Tailpipe tip, chrome | D=80MM | 1 | 11/2019 | 18308631954 | Shop at ECS Tuning | ||||
| For vehicles with M Sports package |
P337A=Yes |
|||||||||
| 03 | Rear muffler | 1 | 18309887666 | Shop at ECS Tuning | ||||||
| For vehicles with Emissions standard EU5 |
S161A=Yes |
|||||||||
| 04 | Clamping bush | D=70 X 70MM | 1 | 18307560780 | $60.54 | Shop at ECS Tuning | ||||
| For vehicles with Emissions standard EU5 and EU3 exhaust emissions standard |
S161A=No S169A=No |
|||||||||
| 04 | Clamping bush | D=75 X 90MM | 1 | 18307560781 | $152.42 | Shop at ECS Tuning | ||||
| 05 | Clamping bush | D=70 X 70MM | 1 | 18307560780 | $60.54 | Shop at ECS Tuning | ||||
| 06 | Vibration absorber | 37 HZ | 1 | 18307593199 | Shop at ECS Tuning | |||||
| 07 | Collar screw | M8X70 | 3 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 08 | Holder rear muffler right front | 1 | 18308582062 | Shop at ECS Tuning | ||||||
| 09 | Rubber Mounting | 2 | 18207798560 | Shop at ECS Tuning | ||||||
| 10 | Bracket, resonator, rear right | 1 | 18308582061 | Shop at ECS Tuning | ||||||
| 11 | Bracket, resonator, rear left | 1 | 18308582060 | Shop at ECS Tuning | ||||||
| 12 | Rubber Mounting | 1 | 18208513515 | Shop at ECS Tuning | ||||||
| 14 | Vibration absorber | 28HZ | 1 | 18303419446 | Shop at ECS Tuning | |||||
| 16 | Collar nut | M8-8-SC-ZNNIV | 2 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M8X25 | 1 | 18309909376 | Shop at ECS Tuning | |||||
| For vehicles with National version Germany and M Sports package and Sport Line |
L801A=No P337A=No P7ACA=Yes |
|||||||||
| 18 | Tailpipe tip, black chrome | D=80MM | 2 | 18308631955 | Shop at ECS Tuning | |||||
| For vehicles with National version Germany and M Sports package and Sport Line |
L801A=No P337A=No P7ACA=No |
|||||||||
| 18 | Tailpipe tip, chrome | D=80MM | 2 | 18308631954 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line |
P337A=Yes P7ACA=No |
|||||||||
| 19 | Tailpipe tip, chrome, left | 1 | 18308631958 | Shop at ECS Tuning | ||||||
| 19 | Tailpipe tip, chrome, right | 1 | 18308631959 | Shop at ECS Tuning | ||||||
