Exhaust system, rear for BMW 5 Series G30 LCI 540iX (2023)

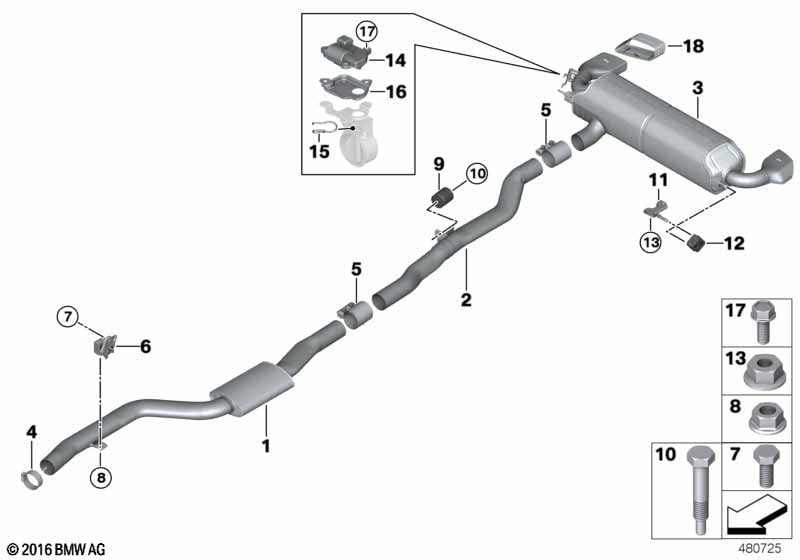

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 540iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Exhaust emission standards EU6 RDE and Emissions standard EU6 rde II |
S1DEA=No S1DFA=No |
||||||||
| 01 | Front muffler | 1 | 18308652304 | Shop at ECS Tuning | ||||||
| 02 | Intermediate pipe | 1 | 18308652305 | Shop at ECS Tuning | ||||||
| 03 | Rear muffler with exhaust flap | 1 | 18308652306 | Shop at ECS Tuning | ||||||
| 04 | Muffler clamp | D=80,0 X 37MM | 1 | 18308635798 | Shop at ECS Tuning | |||||
| 05 | Clamping bush | D=85 X 90MM | 2 | 18307560782 | $113.93 | Shop at ECS Tuning | ||||
| 06 | Transmission holder | 1 | 18208683823 | Shop at ECS Tuning | ||||||
| 07 | Hex bolt with washer | M8X18-U1-8.8 | 2 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M8 | 1 | 18307525607 | $1.62 | Shop at ECS Tuning | ||||
| 09 | Vibration absorber | 39 HZ | 1 | 18307607696 | Shop at ECS Tuning | |||||
| 10 | Collar screw | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 11 | REAR SILENCER BRACKET, front | 2 | 18308635586 | Shop at ECS Tuning | ||||||
| 12 | Swing support | 2 | 18308635587 | Shop at ECS Tuning | ||||||
| 13 | Hex nut | M8-ZNS3 | 4 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 14 | Actuator drive, exhaust flap | 1 | 18308623424 | Shop at ECS Tuning | ||||||
| 15 | Fixing bow | 1 | 18307620323 | Shop at ECS Tuning | ||||||
| 16 | Thermal protection | 1 | 18307628041 | Shop at ECS Tuning | ||||||
| 17 | Hex bolt | M6X16 | 3 | 18308623584 | Shop at ECS Tuning | |||||
| For vehicles with M Shadow Line with expanded scope |
S7M9A=Yes |
|||||||||
| 18 | Tailpipe tip, chrome, right | 1 | 18308631959 | Shop at ECS Tuning | ||||||
| 18 | Tailpipe tip, chrome, left | 1 | 18308631958 | Shop at ECS Tuning | ||||||
| For vehicles with M Shadow Line with expanded scope |
S7M9A=No |
|||||||||
| 18 | Tailpipe tip, black chrome, right | 1 | 18308631961 | Shop at ECS Tuning | ||||||
| 18 | Exhaust pipe tip, black chrome, left | 1 | 18308631960 | Shop at ECS Tuning | ||||||
