Exhaust system, rear for BMW MINI Countryman F60 Cooper (2020)

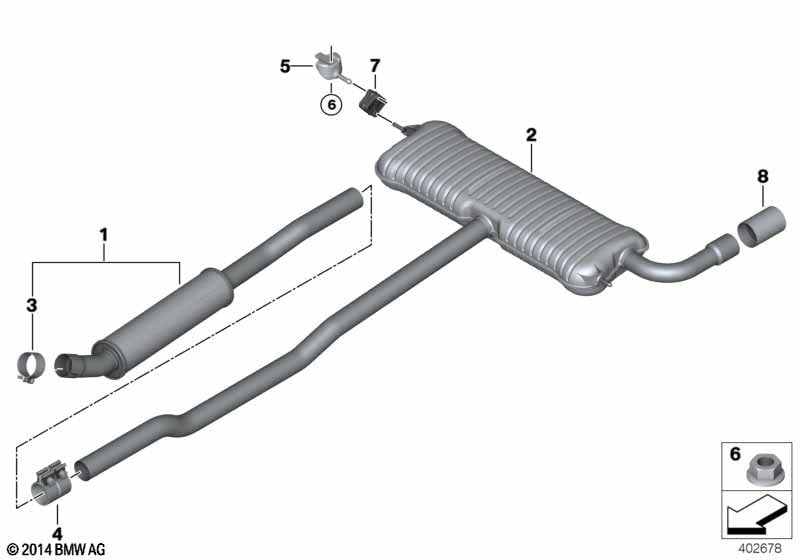

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP catalytic converter w.front silencer | 1 | 18308627227 | Shop at ECS Tuning | ||||||
| 02 | Rear muffler | 1 | 18308627281 | Shop at ECS Tuning | ||||||
| 03 | Screw clamp | 1 | 12/2020 | 18308616158 | ENDED | Shop at ECS Tuning | ||||
| 03 | Screw clamp | 1 | 18305A04BD5 | Shop at ECS Tuning | ||||||
| 04 | Clamping bush | D=55 X 70MM | 1 | 18307560778 | $34.61 | Shop at ECS Tuning | ||||
| 05 | Bracket for exhaust system | 2 | 18308617370 | Shop at ECS Tuning | ||||||
| 06 | Hex nut | M8-ZNS3 | 2 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Rubber Mounting | 2 | 18307616850 | Shop at ECS Tuning | ||||||
| 08 | Exhaust pipe tip, high-gloss chrome | 1 | 18308654203 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
