Exhaust system, rear for BMW 6 Series G32 GT 630dX (2020)

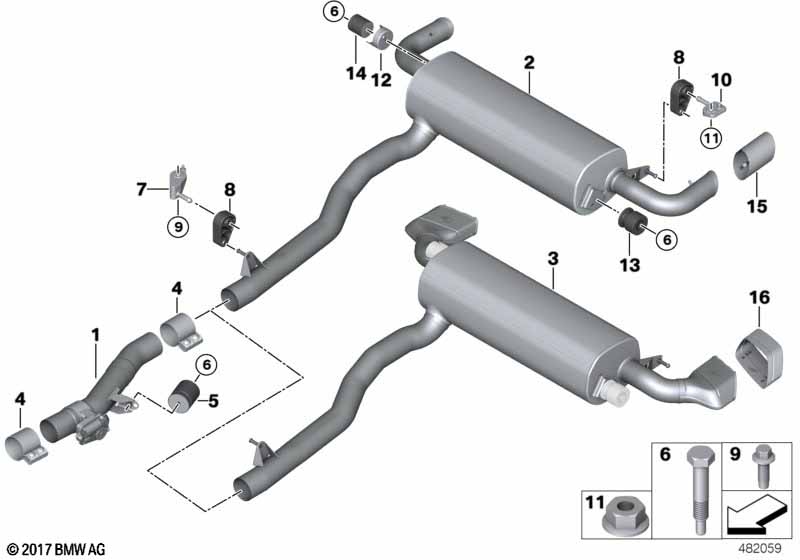

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 630dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | LP exhaust gas flap with cross pipe | 1 | 18307925842 | ENDED | Shop at ECS Tuning | |||||
| 01 | LP exhaust gas flap with cross pipe | 1 | 18307102492 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package Note Repair Manual |
P337A=No |
|||||||||
| 02 | Rear muffler | EU6 | 1 | 18308593843 | Shop at ECS Tuning | |||||
| For vehicles with Emissions standard EU5 or EU3 exhaust emissions standard |
S161A=Yes S169A=Yes |
|||||||||
| 02 | Rear muffler | EU 5/3 | 1 | 18308479926 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package Note Repair Manual |
P337A=Yes |
|||||||||
| 03 | Rear muffler | EU6 | 1 | 18308593844 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Emissions standard EU5 and EU3 exhaust emissions standard |
P337A=Yes S161A=Yes S169A=Yes |
|||||||||
| 03 | Rear muffler | EU 5/3 | 1 | 18308479927 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Emissions standard EU5 and EU3 exhaust emissions standard |
P337A=Yes S161A=Yes S169A=No |
|||||||||
| 03 | Rear muffler | EU 5/3 | 1 | 18308479927 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Emissions standard EU5 and EU3 exhaust emissions standard |
P337A=Yes S161A=No S169A=Yes |
|||||||||
| 03 | Rear muffler | EU 5/3 | 1 | 18308479927 | Shop at ECS Tuning | |||||
| 04 | Clamping bush | D=75 X 90MM | 2 | 18307560781 | $152.42 | Shop at ECS Tuning | ||||
| 05 | Vibration absorber | 42 HZ | 1 | 18307808095 | Shop at ECS Tuning | |||||
| 06 | Collar screw | M8X70 | 3 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 07 | Holder rear muffler right front | 1 | 18308582062 | Shop at ECS Tuning | ||||||
| 08 | Rubber Mounting | 3 | 18207798560 | Shop at ECS Tuning | ||||||
| 09 | Hex bolt | M8X25 | 1 | 18309909376 | Shop at ECS Tuning | |||||
| 10 | Bracket, resonator, rear left | 1 | 18308582060 | Shop at ECS Tuning | ||||||
| 10 | Bracket, resonator, rear right | 1 | 18308582061 | Shop at ECS Tuning | ||||||
| 11 | Collar nut | M8-8-SC-ZNNIV | 2 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 12 | Heat resistant plate | 1 | 18403412867 | $21.00 | Shop at ECS Tuning | |||||
| 13 | Vibration absorber | 35HZ | 1 | 18307793014 | $54.00 | Shop at ECS Tuning | ||||
| 14 | Vibration absorber | 35 HZ | 1 | 18307811444 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line |
P337A=No P7ACA=Yes |
|||||||||
| 15 | Tailpipe tip, black chrome | D=80MM | 2 | 18308631957 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line |
P337A=No P7ACA=No |
|||||||||
| 15 | Tailpipe tip, chrome | D=80MM | 2 | 18308631956 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line |
P337A=Yes P7ACA=No |
|||||||||
| 16 | Tailpipe tip, chrome, left | 1 | 18308631958 | Shop at ECS Tuning | ||||||
| 16 | Tailpipe tip, chrome, right | 1 | 18308631959 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
