Rear silencer and installation kit for BMW 3 Series E90 LCI 320d (2010)

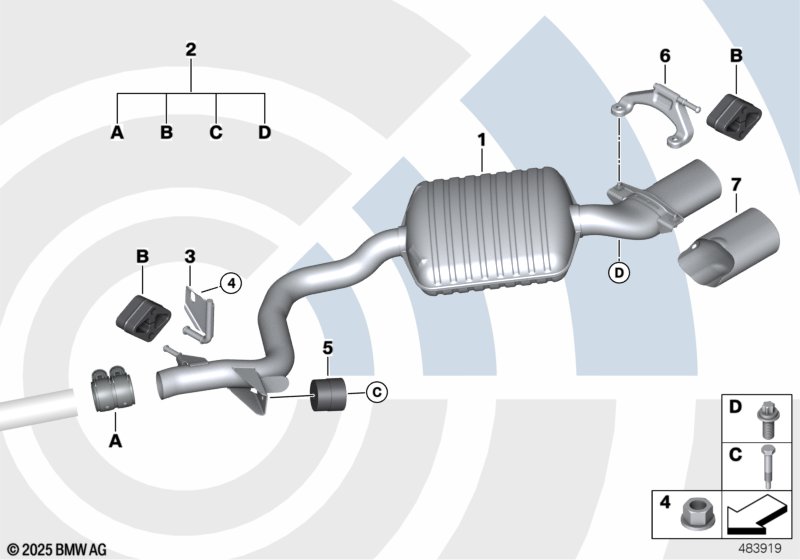

This Rear silencer and installation kit technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear muffler | 1 | 18307805049 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Installation kit for rear silencer | VALUE PARTS | 1 | 18302455263 | Shop at ECS Tuning | |||||
| For vehicles with EU3 exhaust emissions standard |
S169A=Yes |
|||||||||
| 01 | Rear muffler | 1 | 18307795008 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Installation kit for rear silencer | VALUE PARTS | 1 | 18302455263 | Shop at ECS Tuning | |||||
| VALUE REPAIR PARTS! Everything in one click! Saves time, logistical costs and handling costs. Installation kit includes all small parts Improves the repair quality. |
||||||||||
| 02 | Installation kit for rear silencer | VALUE PARTS | 1 | 18302455263 | Shop at ECS Tuning | |||||
| Please observe Repair Manual. | ||||||||||
| 03 | Holder | 1 | 18207549977 | $22.83 | Shop at ECS Tuning | |||||
| 04 | Hex nut | M12X1,5ZNNIV SI | 1 | 07129904866 | $1.85 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 05 | Vibration absorber | 28 HZ | 1 | 18307795604 | Shop at ECS Tuning | |||||
| 06 | Holder | 1 | 18307806089 | Shop at ECS Tuning | ||||||
| For vehicles with EU3 exhaust emissions standard |
S169A=Yes |
|||||||||
| 06 | Holder | 1 | 18307795750 | Shop at ECS Tuning | ||||||
| 07 | Tailpipe end piece, alu-look | 1 | 18307618463 | Shop at ECS Tuning | ||||||
