Exhaust system, rear for BMW 2 Series F45 Active Tourer LCI 216d

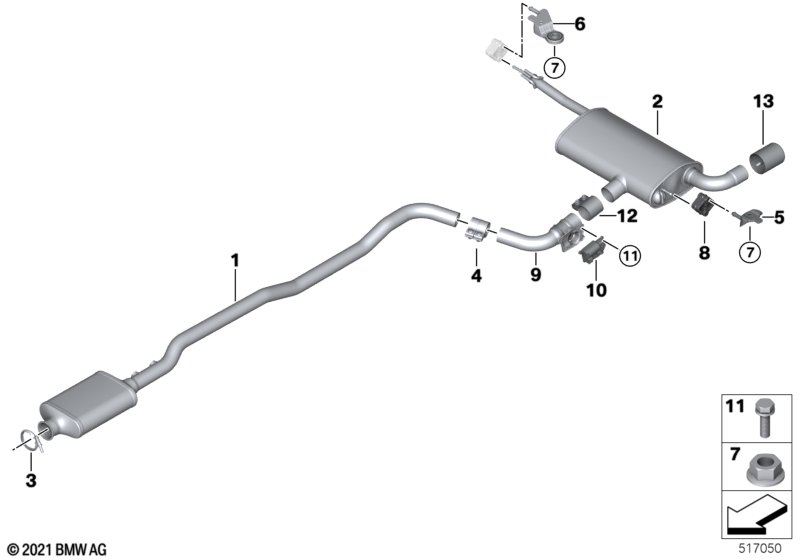

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 216d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP SCR catalytic converter | 1 | 18308593625 | Shop at ECS Tuning | ||||||
| Attention! Observe current service solution! |
||||||||||
| 02 | Rear muffler | 1 | 18302810399 | Shop at ECS Tuning | ||||||
| 03 | Screw clamp | 1 | 18308593486 | Shop at ECS Tuning | ||||||
| 04 | Clamping bush | D=60 X 70MM | 1 | 18307560779 | $34.61 | Shop at ECS Tuning | ||||
| 05 | Bracket for exhaust system | 1 | 18308617370 | Shop at ECS Tuning | ||||||
| 06 | Bracket for exhaust system | 1 | 18208580666 | Shop at ECS Tuning | ||||||
| 07 | Hex nut | M8-ZNS3 | 2 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Rubber Mounting | 2 | 18307616850 | Shop at ECS Tuning | ||||||
| 09 | Exhaust flap | 1 | 03/2018 | 18307828905 | Shop at ECS Tuning | |||||
| 09 | Exhaust flap | 1 | 03/2018 | 18307828904 | Shop at ECS Tuning | |||||
| 10 | Actuator drive, exhaust flap | 1 | 18308593754 | Shop at ECS Tuning | ||||||
| 11 | Hex bolt with washer | M6X20-ZNNIV SI | 3 | 07119905750 | $0.62 | Shop at ECS Tuning | ||||
| 12 | Clamping bush | D=70 X 70MM | 1 | 18307560780 | $60.54 | Shop at ECS Tuning | ||||
| 13 | Exhaust pipe tip, high-gloss chrome | 1 | 18308682297 | Shop at ECS Tuning | ||||||
