Catalytic converter/front silencer for BMW 5 Series E39 528i (1997)

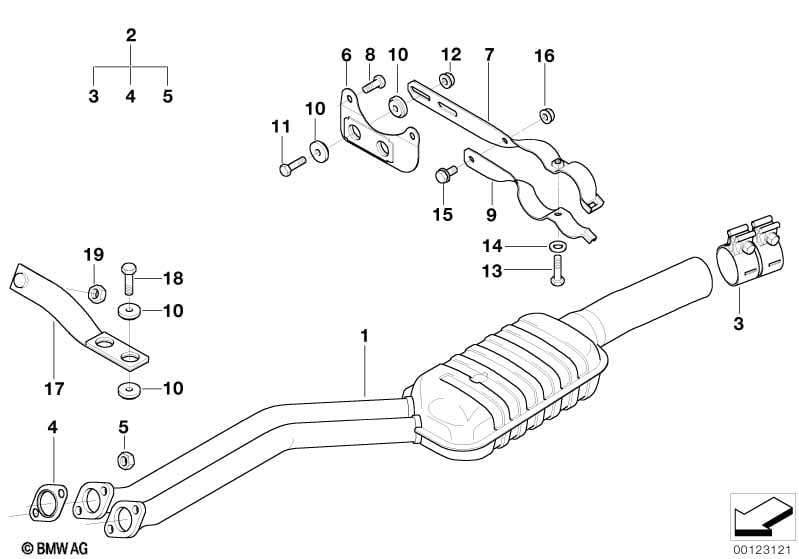

This Catalytic converter/front silencer technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Catalytic converter, see HG11 | |||||||||
| 07 | Exhaust support | ZF | 1 | 18311728235 | $13.25 | Shop at ECS Tuning | ||||
| 08 | Torx-bolt with washer | ISA M8X18 | 2 | 41618217419 | $0.72 | Shop at ECS Tuning | ||||
| 09 | Clamp | 1 | 18311728237 | $7.47 | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission |
=Yes |
|||||||||
| 10 | Joint sleeve | D=8MM | 4 | 18207546579 | $2.86 | Shop at ECS Tuning | ||||
| 14 | Washer | 8,4X18X2MM | 1 | 07149180923 | Shop at ECS Tuning | |||||
