Lambda Probe Fixings for BMW 3 Series G20 Sedan 330e (2019)

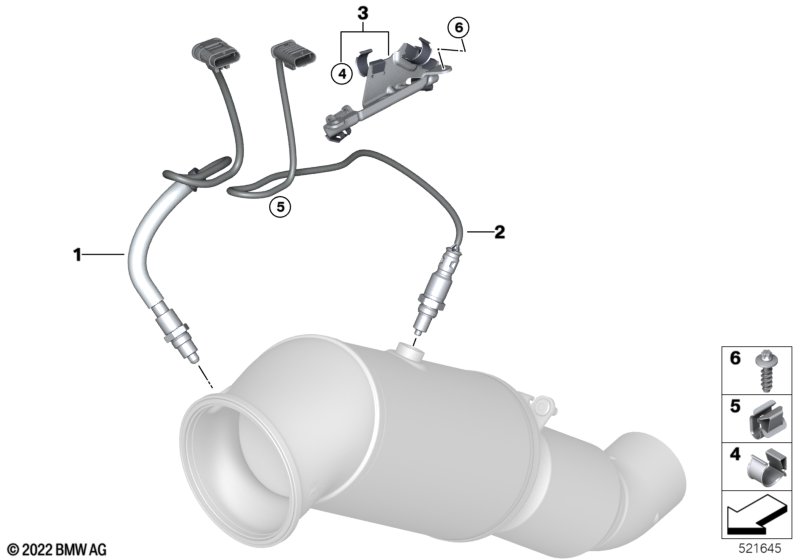

This Lambda Probe Fixings technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Regulating lambda probe | 1 | 11788659971 | Shop at ECS Tuning | ||||||
| 02 | Lambda Monitor sensor | 1 | 11788651104 | Shop at ECS Tuning | ||||||
| For vehicles with Emissions standard EU6 rde II |
S1DFA=Yes |
|||||||||
| 02 | Lambda Monitor sensor | 1 | 11789454709 | Shop at ECS Tuning | ||||||
| 03 | Holder | 2 | 11785A189F9 | Shop at ECS Tuning | ||||||
| 04 | Clip for corrugated tubing | 2 | 12527620159 | Shop at ECS Tuning | ||||||
| 05 | Fixing clamp | A=3,5 - 6,0MM | 2 | 07147547239 | $0.58 | Shop at ECS Tuning | ||||
| 05 | Clip | 2 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| 06 | ASA screw, self-threading | M6X18 | 2 | 11367609963 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan 330e Lambda Probe Fixings?
- This technical diagram illustrates the Lambda Probe Fixings within the Exhaust system group for the 3 Series G20 Sedan 330e produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Regulating lambda probe (Part #11788659971).
- Which models use the hardware listed in this Lambda Probe Fixings?
- The hardware and components featured in the Lambda Probe Fixings are specific to the 3 Series G20 Sedan 330e produced during 2019. These technical specifications ensure that parts like the Regulating lambda probe (11788659971) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lambda Probe Fixings assembly?
- Each item in the Lambda Probe Fixings corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan 330e, you can identify the Regulating lambda probe by locating its position on the schematic, which then links to the official BMW part number 11788659971 for the Exhaust system section.
