Engine-side catalytic converter for BMW 5 Series F90 M5 LCI M5 (2023)

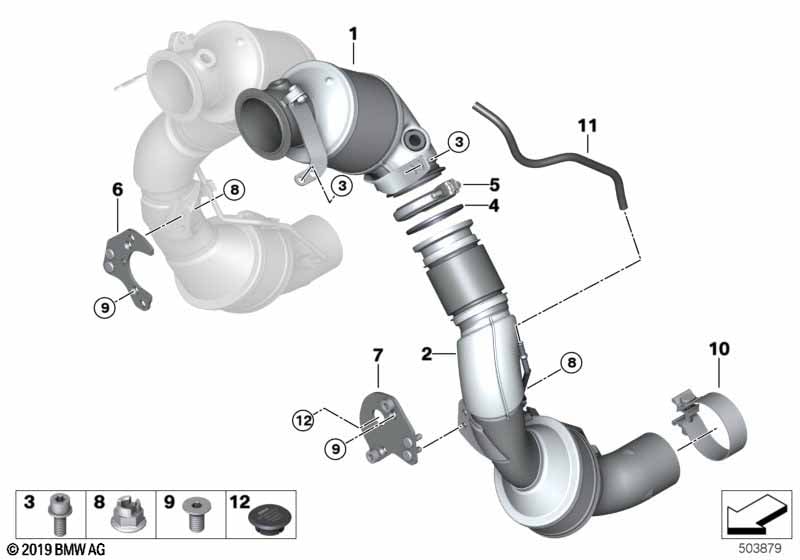

This Engine-side catalytic converter technical drawing provides a detailed breakdown of the assembly for the 5 Series F90 M5 LCI M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Emissions standard EU6 rde II |
S1DFA=No |
||||||||
| For vehicles with Emissions standard EU6 rde II and Additional contents rde |
S1DFA=No S1DZA=No |
|||||||||
| 01 | RP cat.conv.close to the engine upper | CYL. 1-4 | 1 | 18327856827 | Shop at ECS Tuning | |||||
| 01 | RP cat.conv.close to the engine upper | CYL. 5-8 | 1 | 18327856829 | Shop at ECS Tuning | |||||
| For vehicles with Exhaust emission standards EU6 RDE and Emissions standard EU6 rde II and Additional contents rde |
S1DEA=Yes S1DFA=No S1DZA=No |
|||||||||
| 02 | RP catalytic conv.close to the eng.lower | CYL.1-4 | 1 | 18328098918 | Shop at ECS Tuning | |||||
| 02 | RP catalytic conv.close to the eng.lower | CYL. 5-8 | 1 | 18328098919 | Shop at ECS Tuning | |||||
| 03 | Torx-bolt with washer | M8X20 ZNNIV SI | 8 | 07129905423 | $0.55 | Shop at ECS Tuning | ||||
| 04 | Seal f.catalytic convert.close to engine | 2 | 18327856835 | Shop at ECS Tuning | ||||||
| 05 | Screw clamp | D=92MM | 2 | 18327856836 | Shop at ECS Tuning | |||||
| 06 | Holder catalytic converter near engine | ZYL. 1-4 | 1 | 18327619011 | Shop at ECS Tuning | |||||
| 07 | Holder catalytic converter near engine | ZYL. 5-8 | 1 | 18327619012 | Shop at ECS Tuning | |||||
| 08 | Hex nut wiht flange | M8 | 4 | 11627576992 | $2.67 | Shop at ECS Tuning | ||||
| 09 | Countersunk head screw | M6X12-8.8-ZNS3 | 4 | 07119906447 | $1.73 | Shop at ECS Tuning | ||||
| 10 | Muffler clamp | D=80,0 X 31,8MM | 2 | 18307614699 | Shop at ECS Tuning | |||||
| 12 | Not offered by BMW | 1 | 84210300311 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
