Exhaust system, rear for BMW 3 Series G20 Sedan 316d (2020)

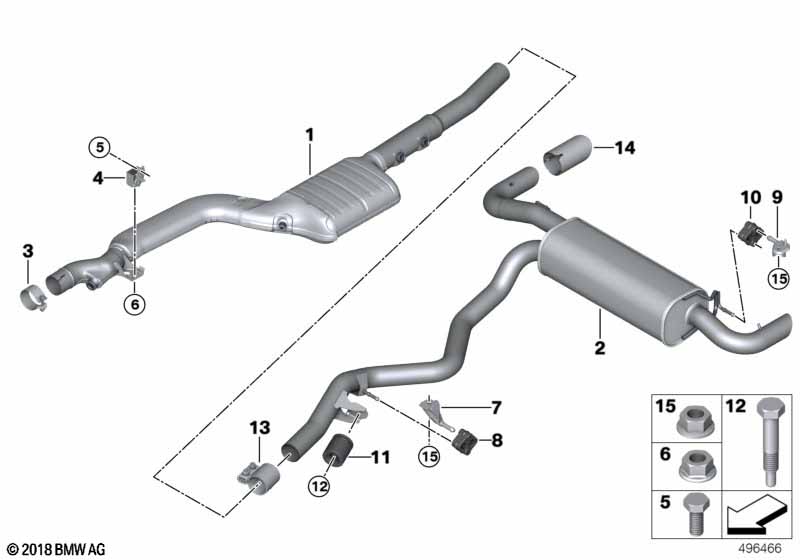

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 316d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Emissions standard EU5 and EU3 exhaust emissions standard |
S161A=No S169A=No |
|||||||||
| 01 | RP SCR catalytic converter | EU6 | 1 | 18308599497 | Shop at ECS Tuning | |||||
| 02 | Rear muffler | 1 | 18308599498 | Shop at ECS Tuning | ||||||
| 03 | Muffler clamp | D=66,7 X 37MM | 1 | 18308478401 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 04 | Transmission holder | 1 | 18208479499 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission |
S205A=No |
|||||||||
| 04 | Transmission holder | 1 | 18208479500 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt with washer | M8X18-U1-8.8 | 3 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 05 | Hex bolt with washer | M8X18-U1-8.8 | 2 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M8 | 1 | 18307525607 | $1.62 | Shop at ECS Tuning | ||||
| 07 | REAR SILENCER BRACKET, front | 1 | 18308599409 | Shop at ECS Tuning | ||||||
| 08 | Swing support | 1 | 18308576996 | Shop at ECS Tuning | ||||||
| 09 | Bracket, resonator, rear left | 1 | 18308599406 | Shop at ECS Tuning | ||||||
| 09 | Bracket, resonator, rear right | 1 | 18308599408 | Shop at ECS Tuning | ||||||
| 10 | Swing support | 2 | 18308576996 | Shop at ECS Tuning | ||||||
| 11 | Vibration absorber | 28HZ | 1 | 18307925642 | Shop at ECS Tuning | |||||
| 12 | Collar screw | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 13 | Clamping bush | D=65 X 70MM | 1 | 18307536426 | $50.38 | Shop at ECS Tuning | ||||
| For vehicles with M Shadow Line with expanded scope |
S7M9A=Yes |
|||||||||
| 14 | Tailpipe tip, black chrome | 2 | 18308485757 | Shop at ECS Tuning | ||||||
| For vehicles with M Shadow Line with expanded scope |
S7M9A=No |
|||||||||
| 14 | Tailpipe tip, chrome | 2 | 18308667479 | Shop at ECS Tuning | ||||||
| 15 | Hex nut | M8-ZNS3 | 3 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
