Exhaust system, rear for BMW 4 Series G22 Coupé 420i (2024)

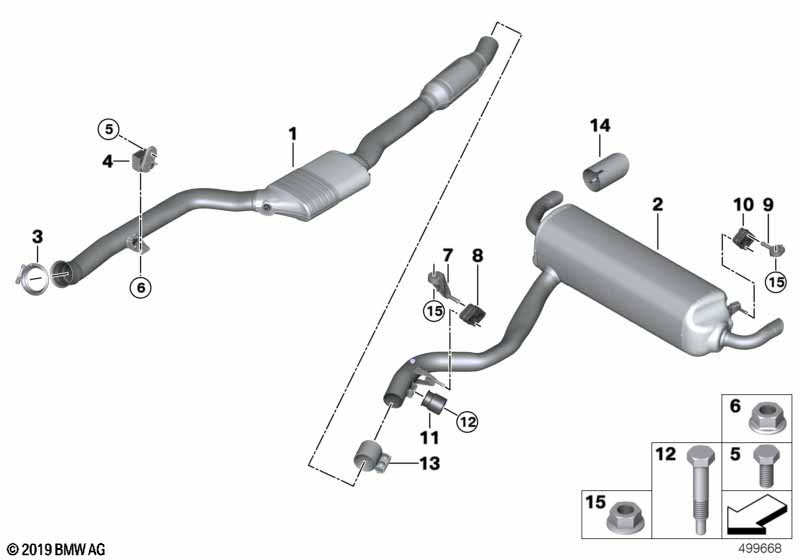

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China or Exhaust technology C6B RDE |
L8AAA=Yes S1DDA=Yes |
|||||||||
| 01 | RP gas.particulate filter w.silencer | CB6 RDE | 1 | 11/2021 | 18309454345 | Shop at ECS Tuning | ||||
| For vehicles with Exhaust emission standards EU6 RDE or Emissions standard EU6 rde II or Exhaust emission standard JPN-WLTP 2024 |
S1DEA=Yes S1DFA=Yes S1DXA=Yes |
|||||||||
| 01 | RP gas.particulate filter w.silencer | RDE | 1 | 18309454948 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 02 | Rear muffler | 1 | 18307634320 | Shop at ECS Tuning | ||||||
| For vehicles with Emissions standard EU6 rde II |
S1DFA=Yes |
|||||||||
| 02 | Rear muffler | 1 | 18307933828 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Exhaust technology C6B RDE and Exhaust emission standards EU6 RDE and Emissions standard EU6 rde II |
L8AAA=Yes S1DDA=Yes S1DEA=Yes S1DFA=Yes |
|||||||||
| 03 | Screw clamp | D=80,0MM | 1 | 18305A09B63 | Shop at ECS Tuning | |||||
| 04 | Transmission holder | 1 | 18208683823 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt with washer | M8X18-U1-8.8 | 2 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M8 | 2 | 18307525607 | $1.62 | Shop at ECS Tuning | ||||
| 07 | Bracket exhaust, rear | 1 | 18307933856 | Shop at ECS Tuning | ||||||
| 08 | Rubber Mounting | 2 | 18208570671 | Shop at ECS Tuning | ||||||
| 09 | Bracket, resonator, rear left | 1 | 18307933854 | Shop at ECS Tuning | ||||||
| 09 | Bracket, resonator, rear right | 1 | 18307933855 | Shop at ECS Tuning | ||||||
| 10 | Swing support | 2 | 18308576996 | Shop at ECS Tuning | ||||||
| 11 | Vibration absorber | 35HZ | 1 | 18307793014 | $54.00 | Shop at ECS Tuning | ||||
| 12 | Collar screw | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 13 | Clamping bush | D=70 X 70MM | 1 | 18307560780 | $60.54 | Shop at ECS Tuning | ||||
| For vehicles with M Shadow Line with expanded scope |
S7M9A=No |
|||||||||
| 14 | Tailpipe tip, chrome | D=90MM | 2 | 18308679075 | Shop at ECS Tuning | |||||
| For vehicles with M Shadow Line with expanded scope |
S7M9A=Yes |
|||||||||
| 14 | Tailpipe tip, black chrome | D=90MM | 2 | 18308485758 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Exhaust technology C6B RDE and Exhaust emission standards EU6 RDE and Emissions standard EU6 rde II |
L8AAA=Yes S1DDA=Yes S1DEA=Yes S1DFA=Yes |
|||||||||
| 15 | Collar nut | M8-8-SC-ZNNIV | 3 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
