Exhaust system, rear for BMW 3 Series G20 Sedan LCI 330dX

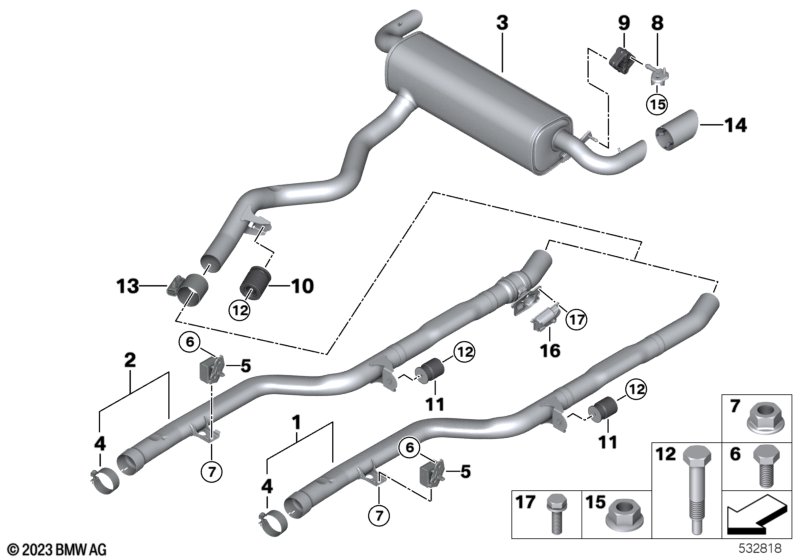

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330dX. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Part not available separately | 1 | 11/2020 | 00000000000 | Shop at ECS Tuning | |||||
| 02 | Front pipe with exhaust flap | 1 | 18308599488 | Shop at ECS Tuning | ||||||
| Select tailpipe trim based on equipment | ||||||||||
| 03 | Rear muffler | EU3/EU5 | 1 | 18308599489 | Shop at ECS Tuning | |||||
| 04 | Muffler clamp | D=80,0 X 37MM | 1 | 03/2024 | 18308623284 | Shop at ECS Tuning | ||||
| 04 | Muffler clamp | D=80,0X37MM | 1 | 18305A78B15 | Shop at ECS Tuning | |||||
| 05 | Transmission holder | 1 | 18208595469 | Shop at ECS Tuning | ||||||
| 06 | Hex bolt with washer | M8X18-U1-8.8 | 2 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M8 | 1 | 18307525607 | $1.62 | Shop at ECS Tuning | ||||
| 08 | Bracket, resonator, rear left | 1 | 18308599406 | Shop at ECS Tuning | ||||||
| 08 | Bracket, resonator, rear right | 1 | 18308599408 | Shop at ECS Tuning | ||||||
| 09 | Rubber Mounting | 2 | 18307616850 | Shop at ECS Tuning | ||||||
| 10 | Vibration absorber | 35HZ | 1 | 18307793014 | $54.00 | Shop at ECS Tuning | ||||
| 11 | Vibration absorber | 42 HZ | 1 | 18308487311 | Shop at ECS Tuning | |||||
| 12 | Collar screw | M8X70 | 2 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 13 | Clamping bush | D=75 X 90MM | 1 | 18307560781 | $152.42 | Shop at ECS Tuning | ||||
| For vehicles with M Shadow Line with expanded scope |
S7M9A=Yes |
|||||||||
| 14 | Tailpipe trim black gloss | D=100MM | 2 | 18305A27118 | Shop at ECS Tuning | |||||
| For vehicles with M Shadow Line with expanded scope |
S7M9A=No |
|||||||||
| 14 | Tailpipe tip, chrome | D=100MM | 2 | 18305A27117 | Shop at ECS Tuning | |||||
| 15 | Hex nut | M8-ZNS3 | 2 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 16 | Actuator drive, exhaust flap | 1 | 18308599403 | Shop at ECS Tuning | ||||||
| 17 | Hex bolt with washer | M6X20-ZNNIV SI | 3 | 07119905750 | $0.62 | Shop at ECS Tuning | ||||
