Exhaust system, rear for BMW 3 Series G21 Touring 330d (2020)

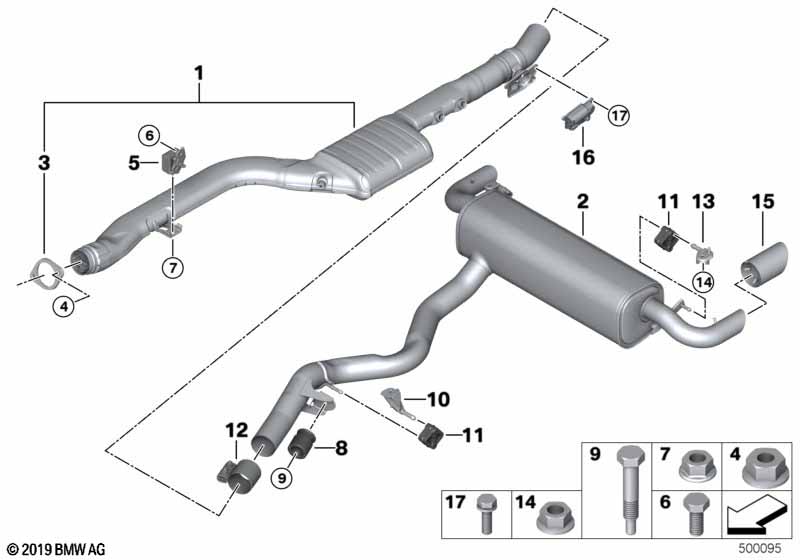

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP SCR catalytic conv.w.exhaust flap | 1 | 18308599486 | Shop at ECS Tuning | ||||||
| 02 | Rear muffler | 1 | 18307925689 | Shop at ECS Tuning | ||||||
| 03 | Flat gasket | 1 | 18308584100 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Collar nut | M8-8-SC-ZNNIV | 2 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M8-ZNS3 | 2 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 05 | Transmission holder | 1 | 18208595469 | Shop at ECS Tuning | ||||||
| 06 | Hex bolt with washer | M8X18-U1-8.8 | 2 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M8 | 1 | 18307525607 | $1.62 | Shop at ECS Tuning | ||||
| 08 | Vibration absorber | 35HZ | 1 | 18307793014 | $54.00 | Shop at ECS Tuning | ||||
| 09 | Collar screw | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 10 | REAR SILENCER BRACKET, front | 1 | 18308599409 | Shop at ECS Tuning | ||||||
| 11 | Rubber Mounting | 3 | 18307616850 | Shop at ECS Tuning | ||||||
| 12 | Clamping bush | D=80 X 90MM | 1 | 18307560815 | Shop at ECS Tuning | |||||
| 13 | Bracket, resonator, rear left | 1 | 18308599406 | Shop at ECS Tuning | ||||||
| 13 | Bracket, resonator, rear right | 1 | 18308599408 | Shop at ECS Tuning | ||||||
| 14 | Hex nut | M8-ZNS3 | 2 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| For vehicles with M Shadow Line with expanded scope |
S7M9A=Yes |
|||||||||
| 15 | Tailpipe tip, black chrome | D=90MM | 2 | 18308485758 | Shop at ECS Tuning | |||||
| For vehicles with M Shadow Line with expanded scope |
S7M9A=No |
|||||||||
| 15 | Tailpipe tip, chrome | D=90MM | 2 | 18308679075 | Shop at ECS Tuning | |||||
| 16 | Actuator drive, exhaust flap | 1 | 18308599403 | Shop at ECS Tuning | ||||||
| 17 | Hex bolt with washer | M6X20-ZNNIV SI | 3 | 07119905750 | $0.62 | Shop at ECS Tuning | ||||
