Exhaust system,front/intermediate pipes for BMW 7 Series G12 730Ld (2019)

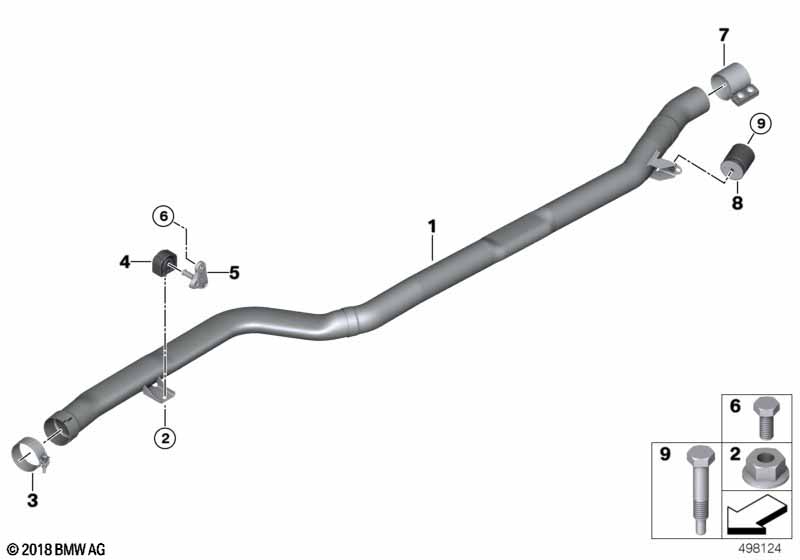

This Exhaust system,front/intermediate pipes technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with EU3 exhaust emissions standard |
S169A=Yes |
|||||||||
| 01 | Intermediate pipe | EU3 | 1 | 03/2019 | 18308586524 | Shop at ECS Tuning | ||||
| 02 | Collar nut | M8-8-SC-ZNNIV | 1 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| For vehicles with Emissions standard EU5 or EU3 exhaust emissions standard |
S161A=Yes S169A=Yes |
|||||||||
| 03 | Muffler clamp | D=82,7 X 37MM | 1 | 18308637404 | Shop at ECS Tuning | |||||
| 04 | Rubber Mounting | 1 | 18208599519 | Shop at ECS Tuning | ||||||
| 05 | Transmission holder | 1 | 18208582034 | Shop at ECS Tuning | ||||||
| 06 | Hex bolt with washer | M8X18-U1-8.8 | 2 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 07 | Clamping bush | D=75 X 90MM | 1 | 18307560781 | $152.42 | Shop at ECS Tuning | ||||
| 08 | Vibration absorber | 42 HZ | 1 | 18307808095 | Shop at ECS Tuning | |||||
| 09 | Collar screw | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
