Exhaust system, rear for BMW 2 Series F23 LCI 218d (2020)

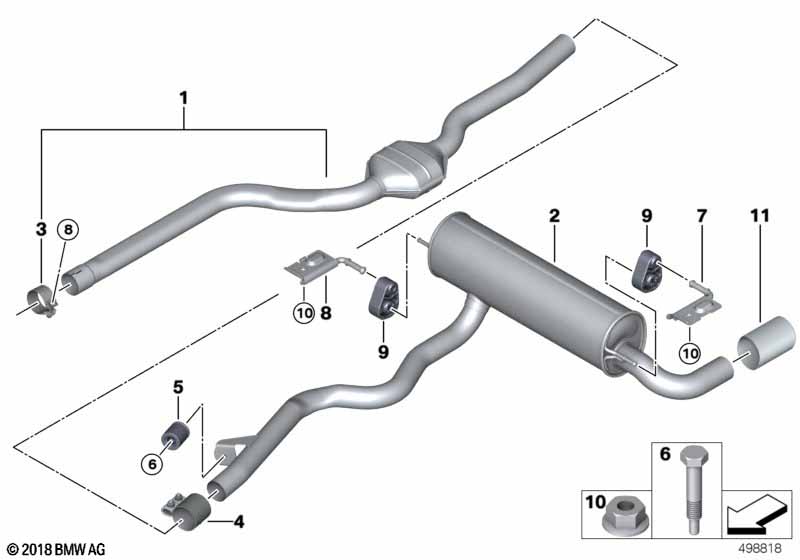

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 2 Series F23 LCI 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Emissions standard EU5 and Emissions standard EU6 and EU3 exhaust emissions standard |
S161A=No S164A=No S169A=No |
||||||||
| 03 | Muffler clamp | D=63,2 X 37MM | 1 | 18308581218 | Shop at ECS Tuning | |||||
| 04 | Clamping bush | D=60 X 70MM | 1 | 18307560779 | $34.61 | Shop at ECS Tuning | ||||
| 05 | Vibration absorber | 43HZ | 1 | 18308624195 | Shop at ECS Tuning | |||||
| 06 | Collar screw | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 07 | Bracket for rear silencer, left | 1 | 18308516522 | Shop at ECS Tuning | ||||||
| 08 | Bracket, rear muffler right | 1 | 18308516521 | Shop at ECS Tuning | ||||||
| 09 | Rubber Mounting | 1 | 18208577081 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line |
P7ACA=Yes |
|||||||||
| 11 | Tailpipe tip, black chrome | 1 | 18307622764 | +core | Shop at ECS Tuning | |||||
| For vehicles with M Sports package or Luxury Line |
P337A=Yes P7S2A=Yes |
|||||||||
| 11 | Tailpipe tip, chrome | 1 | 18307622762 | +core | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and M Aerodynamics package |
P337A=No P7ACA=No P7S2A=No S715A=No |
|||||||||
| 11 | Tailpipe end piece, alu-look | 1 | 18307622763 | +core | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
