Exhaust system, rear for BMW MINI Clubman F54 One (2019)
This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP gasoline particulate filter | RDE | 1 | 18309454312 | Shop at ECS Tuning | |||||
| 02 | Rear muffler | RDE | 1 | 18308694336 | Shop at ECS Tuning | |||||
| 03 | Screw clamp | 1 | 11/2020 | 18308616158 | ENDED | Shop at ECS Tuning | ||||
| 03 | Screw clamp | 1 | 18305A04BD5 | Shop at ECS Tuning | ||||||

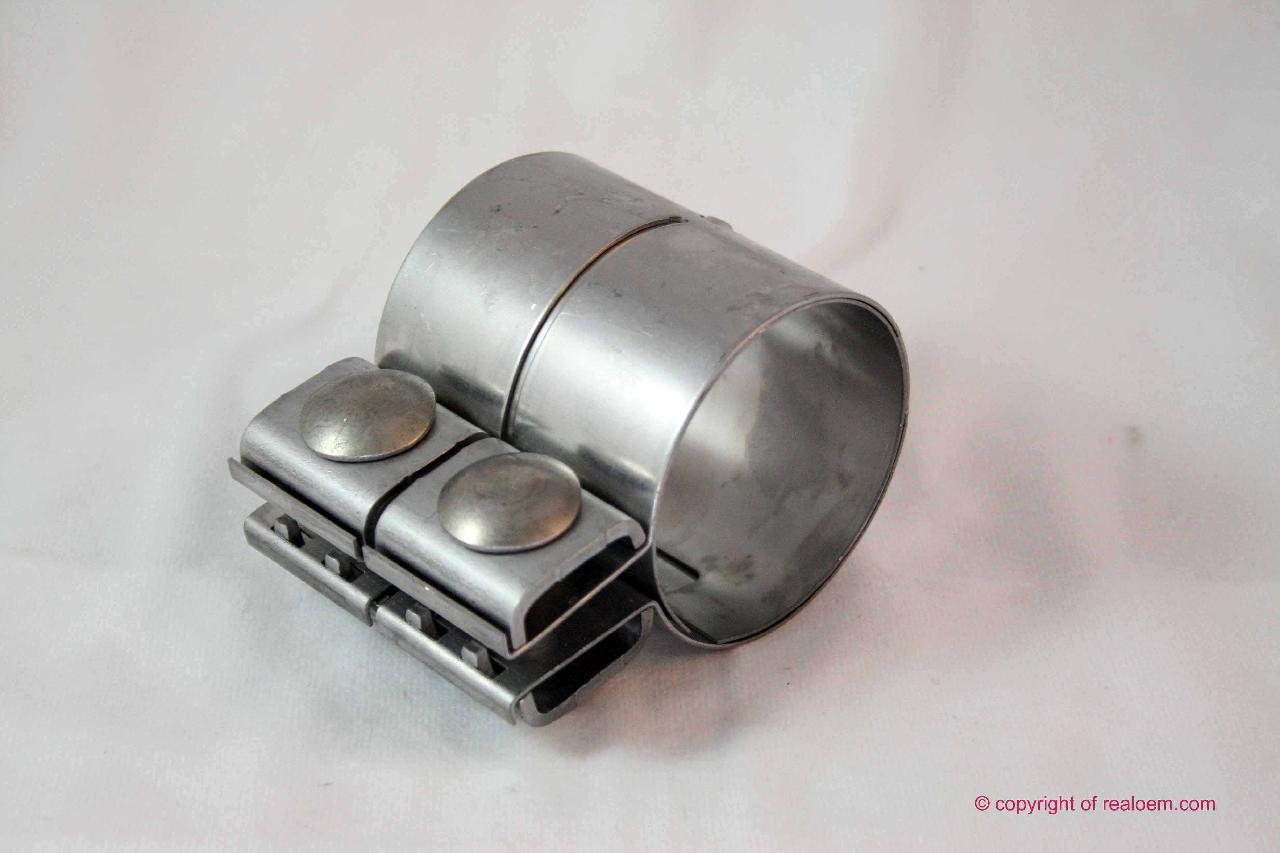

| 04 | Clamping bush | D=60 X 70MM | 1 | 18307560779 | $34.61 | Shop at ECS Tuning | ||||
| 05 | Bracket for exhaust system | 2 | 18308673214 | Shop at ECS Tuning | ||||||
| 06 | Hex nut | M8-ZNS3 | 2 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Rubber Mounting | 2 | 18307616850 | Shop at ECS Tuning | ||||||
| For vehicles with Chrome Line exterieur or JCW Aerodynamics kit |
S346A=Yes S3A1A=Yes |
|||||||||
| 08 | Exhaust pipe tip, high-gloss chrome | 1 | 18308654203 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
