Exhaust system, rear for BMW 8 Series G14 Convertible 840iX (2025)

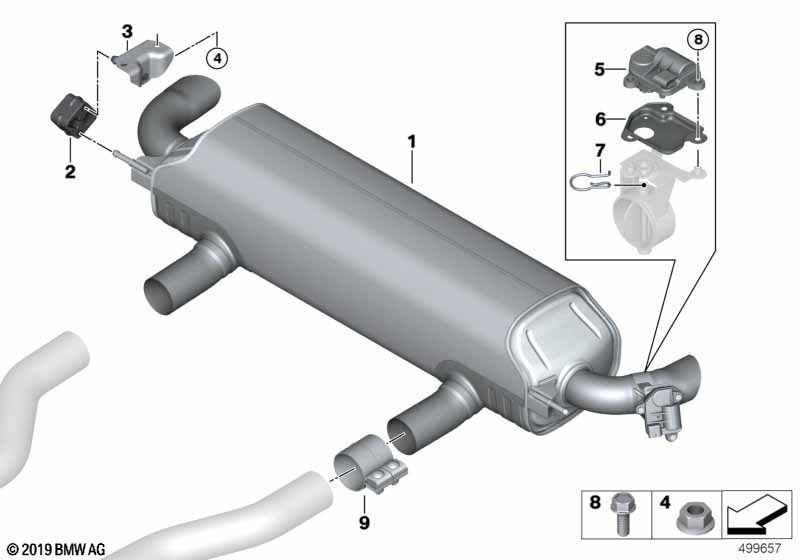

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 8 Series G14 Convertible 840iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear silencer with exhaust flap | 1 | 03/2022 | 18309844437 | Shop at ECS Tuning | |||||
| For vehicles with Exhaust technology C6B RDE and Emissions standard EU6 rde II |
S1DDA=Yes S1DFA=Yes |
|||||||||
| 01 | Rear muffler with exhaust flap | 1 | 03/2022 | 18308744799 | Shop at ECS Tuning | |||||
| For vehicles with Exhaust technology C6B RDE and Emissions standard EU6 rde II |
S1DDA=Yes S1DFA=No |
|||||||||
| 01 | Rear muffler with exhaust flap | 1 | 03/2022 | 18308744799 | Shop at ECS Tuning | |||||
| For vehicles with Exhaust technology C6B RDE and Emissions standard EU6 rde II |
S1DDA=No S1DFA=Yes |
|||||||||
| 01 | Rear muffler with exhaust flap | 1 | 03/2022 | 18308744799 | Shop at ECS Tuning | |||||
| 02 | Swing support | 2 | 18308635587 | Shop at ECS Tuning | ||||||
| 03 | REAR SILENCER BRACKET, front | 2 | 18308635586 | Shop at ECS Tuning | ||||||
| 04 | Hex nut | M8-ZNS3 | 4 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 05 | Actuator drive, exhaust flap | 1 | 18308623424 | Shop at ECS Tuning | ||||||
| 06 | Thermal protection | 1 | 18307628041 | Shop at ECS Tuning | ||||||
| 07 | Fixing bow | 1 | 18307620323 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt | M6X16 | 3 | 18308623584 | Shop at ECS Tuning | |||||
| 09 | Clamping bush | D=70 X 70MM | 2 | 18307560780 | $60.54 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series G14 Convertible 840iX Exhaust system, rear?
- This technical diagram illustrates the Exhaust system, rear within the Exhaust system group for the 8 Series G14 Convertible 840iX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Rear silencer with exhaust flap (Part #18309844437).
- Which models use the hardware listed in this Exhaust system, rear?
- The hardware and components featured in the Exhaust system, rear are specific to the 8 Series G14 Convertible 840iX produced during 2025. These technical specifications ensure that parts like the Rear silencer with exhaust flap (18309844437) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust system, rear assembly?
- Each item in the Exhaust system, rear corresponds to the numbered list below the illustration. For the 8 Series G14 Convertible 840iX, you can identify the Rear silencer with exhaust flap by locating its position on the schematic, which then links to the official BMW part number 18309844437 for the Exhaust system section.
