Gasoline particulate filter, near engine for BMW 3 Series G21 Touring LCI 320e (2024)

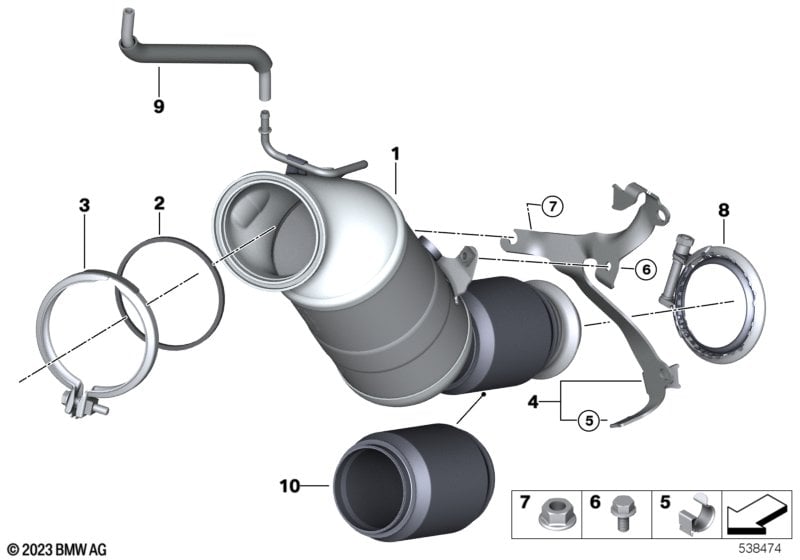

This Gasoline particulate filter, near engine technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI 320e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP catalytic conv.close to the engine | RDE II | 1 | 18329488919 | Shop at ECS Tuning | |||||
| 02 | Gasket ring | 1 | 18307581970 | Shop at ECS Tuning | ||||||
| 03 | Screw clamp | 1 | 18307606136 | Shop at ECS Tuning | ||||||
| 04 | Holder catalytic converter near engine | 1 | 18329488938 | Shop at ECS Tuning | ||||||
| 05 | Cable clamp | D=19-24/B=5 | 2 | 11787548951 | $1.12 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X20-U1-8.8 | 1 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M8 | 1 | 18307525607 | $1.62 | Shop at ECS Tuning | ||||
| 08 | Screw clamp | D=80,0MM | 1 | 18305A09B63 | Shop at ECS Tuning | |||||
| 09 | Hose | 1 | 18327933663 | Shop at ECS Tuning | ||||||
| "Attention! The decoupling element may be offered only after the warranty period (in Europe 36 months and in the United States 60 months) of the vehicle." Observe repair manual. Replace add-on parts and seals! |
||||||||||
| 10 | Decoupling element | VALUE PARTS | 1 | 18305B33200 | Shop at ECS Tuning | |||||
