Petrol particul.filter sens./mount.parts for BMW 5 Series G30 540i

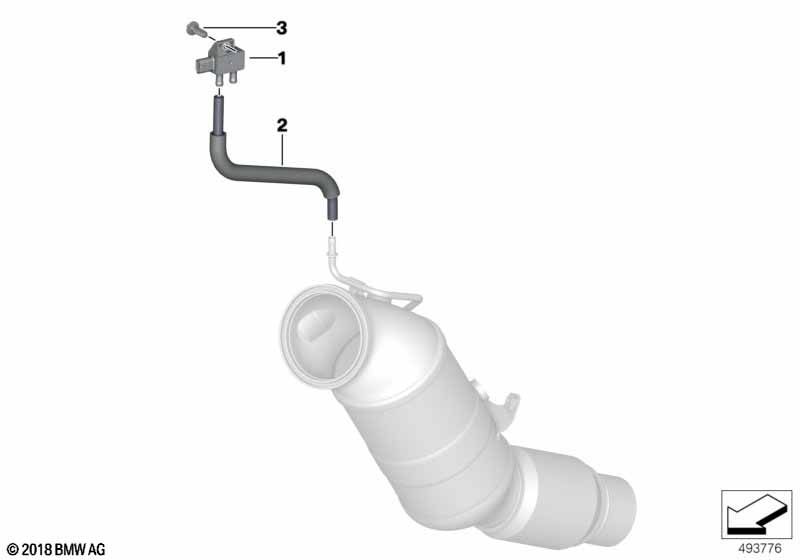

This Petrol particul.filter sens./mount.parts technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 540i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Exhaust emission standards EU6 RDE or Emissions standard EU6 rde II or Emission standard BHARAT STAGE VI RDE |
S1DEA=Yes S1DFA=Yes S1DMA=Yes |
|||||||||
| 01 | Differential pressure sensor | 1 | 13628570686 | Shop at ECS Tuning | ||||||
| For vehicles with Emissions standard EU6 rde II |
S1DFA=Yes |
|||||||||
| 02 | Hose | 1 | 18329452479 | Shop at ECS Tuning | ||||||
| For vehicles with Exhaust emission standards EU6 RDE |
S1DEA=Yes |
|||||||||
| 02 | Hose | 1 | 18329452479 | Shop at ECS Tuning | ||||||
| For vehicles with Exhaust emission standards EU6 RDE or Emissions standard EU6 rde II |
S1DEA=Yes S1DFA=Yes |
|||||||||
| 03 | ASA screw, self-threading | M6X18 | 1 | 11367609963 | Shop at ECS Tuning | |||||
