Exhaust system, rear for BMW 5 Series G30 LCI 540iX (2023)

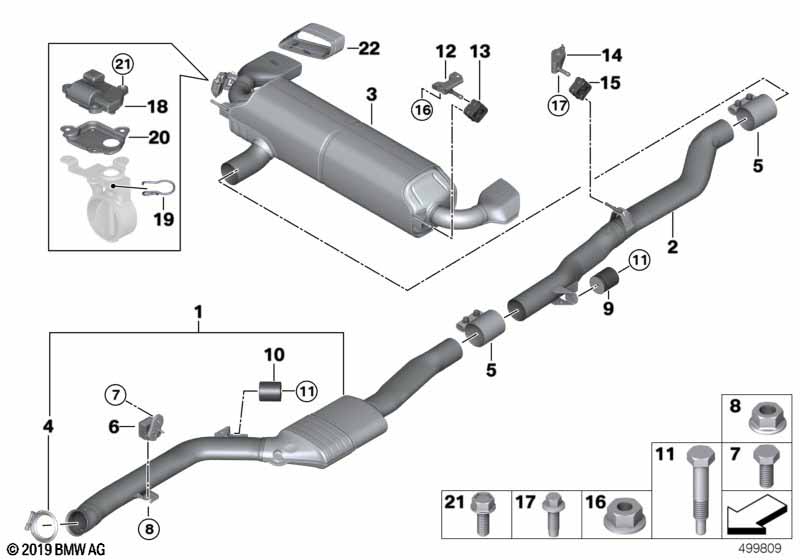

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 540iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Emissions standard EU6 rde II |
S1DFA=Yes |
|||||||||
| 01 | RP gas.particulate filter w.front pipe | 1 | 18309454972 | Shop at ECS Tuning | ||||||
| 02 | Intermediate pipe | 1 | 18308698928 | Shop at ECS Tuning | ||||||
| 03 | Rear muffler with exhaust flap | 1 | 18308652306 | Shop at ECS Tuning | ||||||
| 04 | Screw clamp | D=80,0MM | 1 | 18305A09B63 | Shop at ECS Tuning | |||||
| 05 | Clamping bush | D=85 X 90MM | 2 | 18307560782 | $113.93 | Shop at ECS Tuning | ||||
| 06 | Transmission holder | 1 | 18208683823 | Shop at ECS Tuning | ||||||
| 07 | Hex bolt with washer | M8X18-U1-8.8 | 2 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M8 | 1 | 18307525607 | $1.62 | Shop at ECS Tuning | ||||
| 09 | Vibration absorber | 39 HZ | 1 | 18307607696 | Shop at ECS Tuning | |||||
| 11 | Collar screw | M8X70 | 2 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 12 | REAR SILENCER BRACKET, front | 2 | 18308635586 | Shop at ECS Tuning | ||||||
| 13 | Swing support | 2 | 18308635587 | Shop at ECS Tuning | ||||||
| 14 | Holder rear muffler right front | 1 | 18308582062 | Shop at ECS Tuning | ||||||
| 15 | Rubber Mounting | 1 | 18308631988 | Shop at ECS Tuning | ||||||
| 16 | Collar nut | M8-8-SC-ZNNIV | 4 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M8X25 | 1 | 18309909376 | Shop at ECS Tuning | |||||
| 18 | Actuator drive, exhaust flap | 1 | 18308623424 | Shop at ECS Tuning | ||||||
| 19 | Fixing bow | 1 | 18307620323 | Shop at ECS Tuning | ||||||
| 20 | Thermal protection | 1 | 18307628041 | Shop at ECS Tuning | ||||||
| 21 | Hex bolt | M6X16 | 3 | 18308623584 | Shop at ECS Tuning | |||||
| For vehicles with M Shadow Line with expanded scope |
S7M9A=No |
|||||||||
| 22 | Tailpipe tip, chrome, left | 1 | 18308631958 | Shop at ECS Tuning | ||||||
| 22 | Tailpipe tip, chrome, right | 1 | 18308631959 | Shop at ECS Tuning | ||||||
| For vehicles with M Shadow Line with expanded scope |
S7M9A=Yes |
|||||||||
| 22 | Exhaust pipe tip, black chrome, left | 1 | 18308631960 | Shop at ECS Tuning | ||||||
| 22 | Tailpipe tip, black chrome, right | 1 | 18308631961 | Shop at ECS Tuning | ||||||
