Exhaust system, rear for BMW 3 Series F31 LCI 325d (2016)

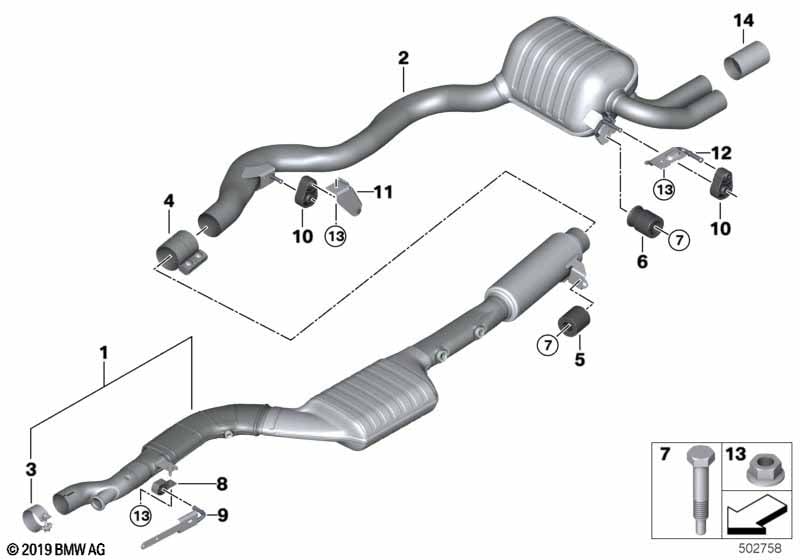

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series F31 LCI 325d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 06 | Vibration absorber | 40HZ | 1 | 18307790671 | Shop at ECS Tuning | |||||
| 07 | Collar screw | M8X70 | 2 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 08 | Rubber Mounting | 1 | 18208570668 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission |
S205A=No |
|||||||||
| 09 | Gearbox support | 1 | 18208584189 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 09 | Gearbox support | 1 | 18208570667 | Shop at ECS Tuning | ||||||
| 11 | Rear silencer bracket | 1 | 18308476560 | Shop at ECS Tuning | ||||||
| 12 | Bracket for rear silencer, left | 1 | 18308570272 | Shop at ECS Tuning | ||||||
| 13 | Hex nut | M8-ZNS3 | 3 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=Yes |
|||||||||
| 14 | Tailpipe end piece, alu-look | 1 | 18307610635 | +core | Shop at ECS Tuning | |||||
| For vehicles with Sport Line |
P7ACA=No |
|||||||||
| 14 | Tailpipe tip, chrome | 1 | 18307610634 | +core | Shop at ECS Tuning | |||||
| For vehicles with Sport Line or Sport Line or M Sport |
P7ACA=Yes P7B1A=Yes P7B3A=Yes |
|||||||||
| 14 | Tailpipe tip, black chrome | 1 | 18307610636 | +core | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
