Exhaust system, rear for BMW 3 Series G28 Sedan 320Li (2022)

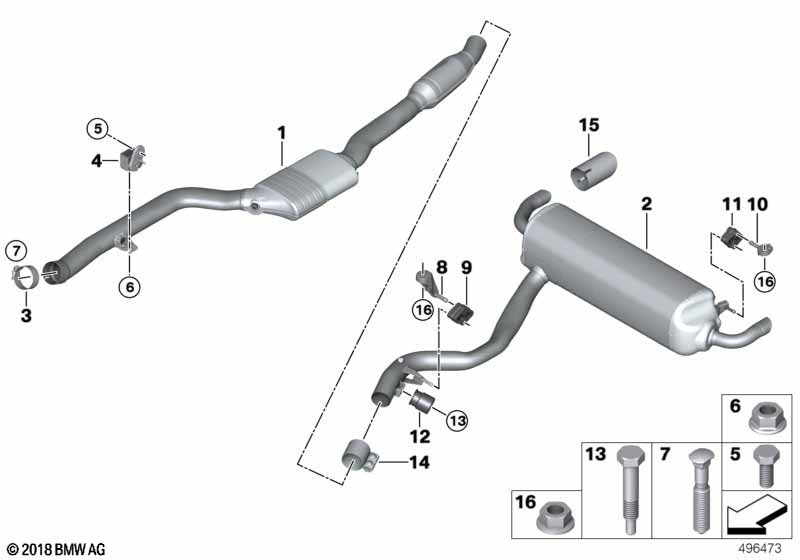

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series G28 Sedan 320Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP gas.particulate filter w.silencer | RDE | 1 | 18307933825 | Shop at ECS Tuning | |||||
| For vehicles with National version China or Exhaust technology C6B RDE |
L8AAA=Yes S1DDA=Yes |
|||||||||
| 01 | RP gas.particulate filter w.silencer | RDE | 1 | 09/2022 | 18309845237 | Shop at ECS Tuning | ||||
| 02 | Rear muffler | 1 | 18307933826 | Shop at ECS Tuning | ||||||
| 03 | Muffler clamp | D=80,0 X 37MM | 1 | 03/2024 | 18308623284 | Shop at ECS Tuning | ||||
| 03 | Muffler clamp | D=80,0X37MM | 1 | 18305A78B15 | Shop at ECS Tuning | |||||
| 04 | Transmission holder | 1 | 18208683823 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt with washer | M8X18-U1-8.8 | 2 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M8 | 2 | 18307525607 | $1.62 | Shop at ECS Tuning | ||||
| 07 | Repair kit screws | 2 | 18307620661 | Shop at ECS Tuning | ||||||
| 08 | Bracket exhaust, rear | 2 | 18307933856 | Shop at ECS Tuning | ||||||
| 09 | Rubber Mounting | 2 | 18208570671 | Shop at ECS Tuning | ||||||
| 10 | Bracket, resonator, rear left | 1 | 18307933854 | Shop at ECS Tuning | ||||||
| 10 | Bracket, resonator, rear right | 1 | 18307933855 | Shop at ECS Tuning | ||||||
| 11 | Swing support | 2 | 18308576996 | Shop at ECS Tuning | ||||||
| 12 | Not offered by BMW | 1 | 84210300311 | ENDED | Shop at ECS Tuning | |||||
| 13 | Not offered by BMW | 1 | 84210300311 | ENDED | Shop at ECS Tuning | |||||
| 14 | Clamping bush | D=70 X 70MM | 1 | 18307560780 | $60.54 | Shop at ECS Tuning | ||||
| 15 | Not offered by BMW | 1 | 84210300311 | ENDED | Shop at ECS Tuning | |||||
| Without tailpipe trim | ||||||||||
| 16 | Hex nut | M8-ZNS3 | 3 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
