Petrol particul.filter sens./mount.parts for BMW 2 Series F23 LCI 220i (2021)

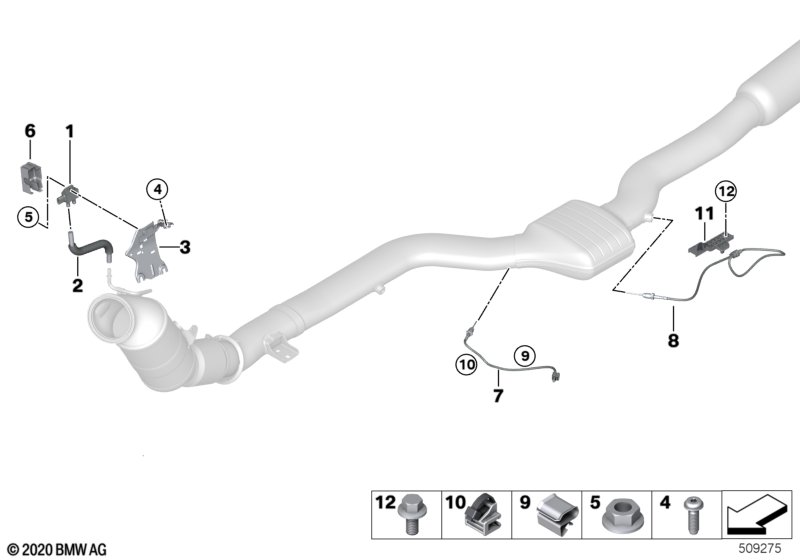

This Petrol particul.filter sens./mount.parts technical drawing provides a detailed breakdown of the assembly for the 2 Series F23 LCI 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Exhaust emission standards C6B RDE |
S1DCA=Yes |
||||||||
| 01 | Differential pressure sensor | 1 | 13628570686 | Shop at ECS Tuning | ||||||
| 02 | Hose | 1 | 18328684697 | Shop at ECS Tuning | ||||||
| 03 | Holder for petrol particle filter sensor | 1 | 13628681206 | Shop at ECS Tuning | ||||||
| 04 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 05 | ISA screw | M8X16-8.8-ZNS3 | 1 | 07129905214 | $0.53 | Shop at ECS Tuning | ||||
| 06 | Cover, sensor | 1 | 13628682791 | Shop at ECS Tuning | ||||||
| 07 | Temperature sensor, exhaust | L=320 | 1 | 11788744984 | Shop at ECS Tuning | |||||
| 08 | Temperature sensor, exhaust | L=415 | 1 | 13629429797 | Shop at ECS Tuning | |||||
| 09 | Fixing clamp | A=3,5 - 6,0MM | 1 | 07147547239 | $0.58 | Shop at ECS Tuning | ||||
| 10 | Cable strap bracket | 1 | 61137562743 | $0.68 | Shop at ECS Tuning | |||||
| 11 | Bracket for temperature sensor | 1 | 13629429815 | Shop at ECS Tuning | ||||||
| 12 | Hex bolt | M5X10 | 1 | 07119906043 | $2.84 | Shop at ECS Tuning | ||||
