Catalyser/Diesel particulate filter for BMW 7 Series G12 LCI 730LdX (2022)

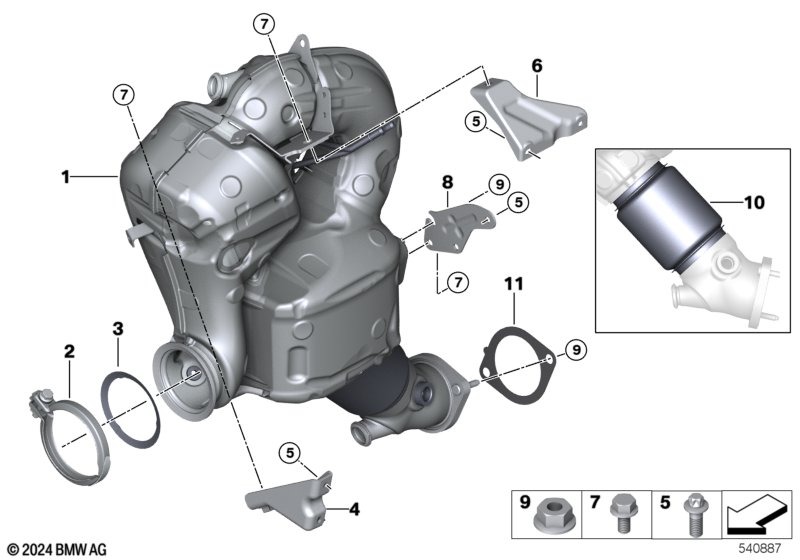

This Catalyser/Diesel particulate filter technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP diesel particulate filter | RDE 2 | 1 | 18328598299 | Shop at ECS Tuning | |||||
| 02 | Screw clamp | D=108,4 | 1 | 11658585233 | Shop at ECS Tuning | |||||
| 03 | Gasket | 1 | 18307803853 | Shop at ECS Tuning | ||||||
| 04 | Holder catalytic converter near engine | 1 | 18327925997 | Shop at ECS Tuning | ||||||
| 05 | Star-socket screw | M8X16-8.8-ZNS3 | 6 | 07119907332 | Shop at ECS Tuning | |||||
| 06 | Holder catalytic converter near engine | 1 | 18328596447 | Shop at ECS Tuning | ||||||
| 07 | Hex bolt | M8X16-8.8-ZNS3 | 3 | 07119904124 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Holder catalytic converter near engine | 1 | 18327925998 | Shop at ECS Tuning | ||||||
| 09 | Collar nut | M8-8-SC-ZNNIV | 3 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| "Attention! The decoupling element may be offered only after the warranty period (in Europe 36 months and in the United States 60 months) of the vehicle." Observe repair manual. Replace add-on parts and seals! |
||||||||||
| 10 | Decoupling element | VALUE PARTS | 1 | 18328477088 | Shop at ECS Tuning | |||||
| 11 | Gasket | 1 | 18308572007 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Hex nut wiht flange | M8 | 2 | 18307620549 | Shop at ECS Tuning | |||||
