Exhaust system, rear for BMW 7 Series G11 LCI 730d (2022)

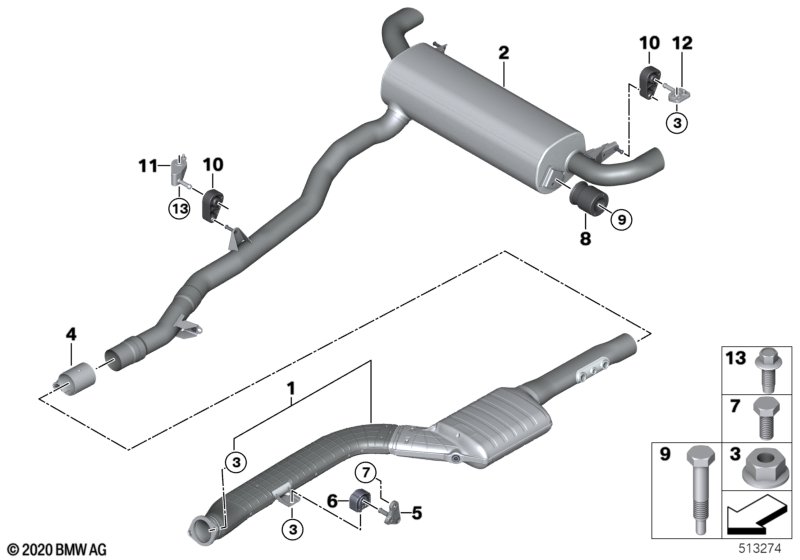

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP SCR catalytic converter | 1 | 18308477765 | Shop at ECS Tuning | ||||||
| 02 | Rear muffler | 1 | 18308477770 | Shop at ECS Tuning | ||||||
| 03 | Collar nut | M8-8-SC-ZNNIV | 4 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 04 | Clamping bush | D=75 X 90MM | 1 | 18307560781 | $152.42 | Shop at ECS Tuning | ||||
| 05 | Transmission holder | 1 | 18208582034 | Shop at ECS Tuning | ||||||
| 06 | Rubber Mounting | 1 | 18208599519 | Shop at ECS Tuning | ||||||
| 07 | Hex bolt with washer | M8X18-U1-8.8 | 2 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 08 | Vibration absorber | 35HZ | 1 | 18307793014 | $54.00 | Shop at ECS Tuning | ||||
| 09 | Collar screw | M8X70 | 3 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 10 | Rubber Mounting | 3 | 18207798560 | Shop at ECS Tuning | ||||||
| 11 | Holder rear muffler right front | 1 | 18308582062 | Shop at ECS Tuning | ||||||
| 12 | Bracket, resonator, rear right | 1 | 18308582061 | Shop at ECS Tuning | ||||||
| 12 | Bracket, resonator, rear left | 1 | 18308582060 | Shop at ECS Tuning | ||||||
| 13 | Hex bolt | M8X25 | 1 | 18309909376 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G11 LCI 730d Exhaust system, rear?
- This technical diagram illustrates the Exhaust system, rear within the Exhaust system group for the 7 Series G11 LCI 730d produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the RP SCR catalytic converter (Part #18308477765).
- Which models use the hardware listed in this Exhaust system, rear?
- The hardware and components featured in the Exhaust system, rear are specific to the 7 Series G11 LCI 730d produced during 2022. These technical specifications ensure that parts like the RP SCR catalytic converter (18308477765) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust system, rear assembly?
- Each item in the Exhaust system, rear corresponds to the numbered list below the illustration. For the 7 Series G11 LCI 730d, you can identify the RP SCR catalytic converter by locating its position on the schematic, which then links to the official BMW part number 18308477765 for the Exhaust system section.
