Engine-side catalytic converter for BMW 8 Series G14 Convertible M850iX (2025)

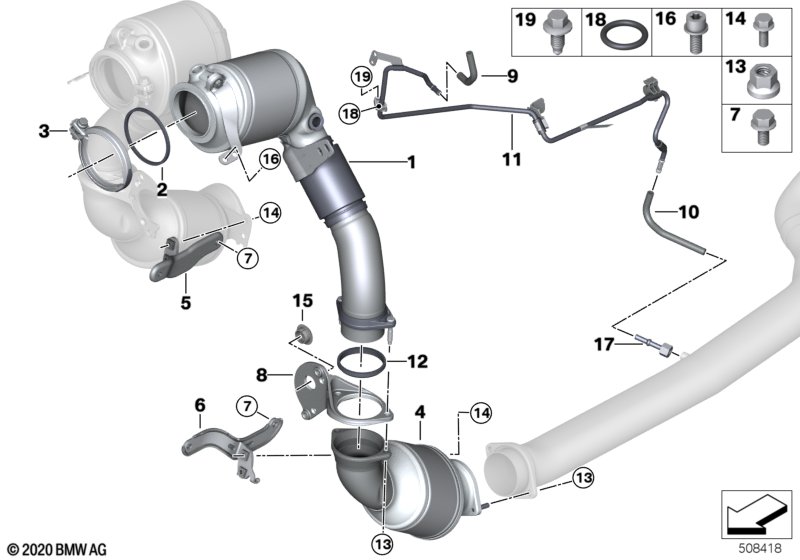

This Engine-side catalytic converter technical drawing provides a detailed breakdown of the assembly for the 8 Series G14 Convertible M850iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Emissions standard EU6 rde II and vehicles produced from 11/01/2020 |
S1DFA=Yes |
||||||||
| 01 | RP catalytic conv.close to the engine | CYL.1-4 | 1 | 18329470195 | Shop at ECS Tuning | |||||
| 01 | RP catalytic conv.close to the engine | CYL.5-8 | 1 | 18329470196 | Shop at ECS Tuning | |||||
| 02 | Gasket exh.turbocharger/cat.converter | 1 | 18307553601 | $18.21 | Shop at ECS Tuning | |||||
| 03 | Screw clamp | D=108,4 | 1 | 11658585233 | Shop at ECS Tuning | |||||
| 04 | RP catalytic converter | CYL.1-4 | 1 | 18309468818 | Shop at ECS Tuning | |||||
| 04 | RP catalytic converter | CYL.5-8 | 1 | 18309468819 | Shop at ECS Tuning | |||||
| 05 | Holder for petrol particulate filter | CYL.1-4 | 1 | 18329845724 | Shop at ECS Tuning | |||||
| 06 | Holder for petrol particulate filter | CYL.5-8 | 1 | 18329845725 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M8X20-U1-8.8 | 4 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| 08 | Holder f.cat.converter near engine right | CYL.1-4 | 1 | 18328691570 | Shop at ECS Tuning | |||||
| 08 | Holder for petrol particulate filter | CYL.5-8 | 1 | 18328691571 | Shop at ECS Tuning | |||||
| 09 | Hose | CYL.5-8 | 1 | 18305A241E1 | Shop at ECS Tuning | |||||
| 09 | Hose | CYL.1-4 | 1 | 18305A241E0 | Shop at ECS Tuning | |||||
| 10 | Hose | CYL.1-4 | 1 | 18305A241E2 | Shop at ECS Tuning | |||||
| 10 | Hose | CYL.5-8 | 1 | 18305A241E3 | Shop at ECS Tuning | |||||
| 11 | Pressure line petrol particulate filter | CYL.1-4 | 1 | 18308482538 | Shop at ECS Tuning | |||||
| 11 | Pressure line petrol particulate filter | CYL.5-8 | 1 | 18308482539 | Shop at ECS Tuning | |||||
| 12 | Gasket ring | 2 | 18307843213 | Shop at ECS Tuning | ||||||
| 13 | Collar nut | M8 | 8 | 18307597650 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | M8X20-8.8ZNS3 | 4 | 07119904401 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Torx-bolt with washer | M8X20 ZNNIV SI | 8 | 07129905423 | $0.55 | Shop at ECS Tuning | ||||
| 17 | Pressure pipe with union nut | RDE II | 2 | 18308482540 | Shop at ECS Tuning | |||||
| 18 | Seal for pressure line/flange | 2 | 18309424474 | Shop at ECS Tuning | ||||||
| 19 | Hex bolt | 2 | 07119909637 | Shop at ECS Tuning | ||||||
