Exhaust system, rear for BMW 1 Series F40 M135iX (2024)

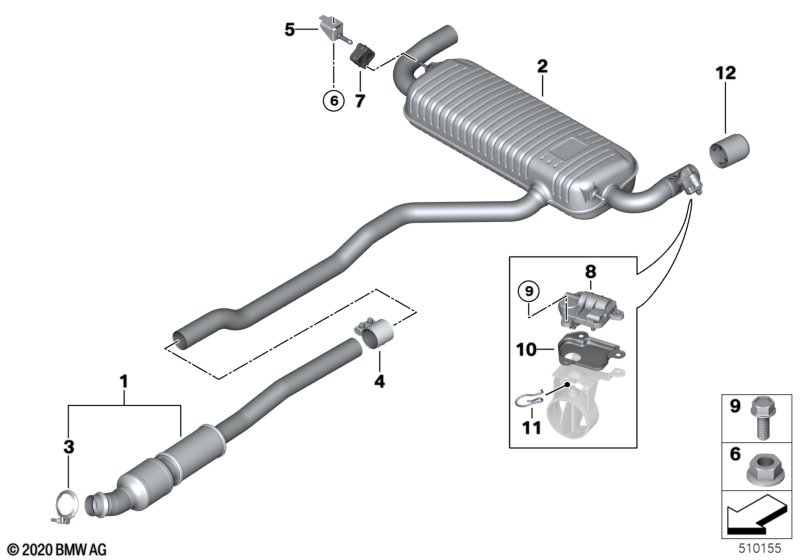

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 M135iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles produced from 11/01/2020 |
|||||||||
| For vehicles with Emissions standard EU6 rde II and Country-specific equipment Taiwan 04825 |
S1DFA=Yes S8LTA=No |
|||||||||
| 01 | RP catalytic converter w.front silencer | 1 | 18308645680 | Shop at ECS Tuning | ||||||
| For vehicles with Emissions standard EU6 rde II |
S1DFA=Yes |
|||||||||
| 02 | Rear muffler with exhaust flap | 1 | 18309799878 | Shop at ECS Tuning | ||||||
| 03 | Screw clamp | D=70MM | 1 | 18305A04BD6 | Shop at ECS Tuning | |||||
| 04 | Clamping bush | D=65 X 70MM | 1 | 18307536426 | $50.38 | Shop at ECS Tuning | ||||
| 05 | Bracket for exhaust system | 2 | 18308673214 | Shop at ECS Tuning | ||||||
| 06 | Hex nut | M8-ZNS3 | 2 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Rubber Mounting | 2 | 18307616850 | Shop at ECS Tuning | ||||||
| 08 | Actuator drive, exhaust flap | 1 | 18308632154 | Shop at ECS Tuning | ||||||
| 09 | Hex bolt | M6X16 | 3 | 18308623584 | Shop at ECS Tuning | |||||
| 10 | Thermal protection | 1 | 18307628041 | Shop at ECS Tuning | ||||||
| 11 | Fixing bow | 1 | 18307620323 | Shop at ECS Tuning | ||||||
| For vehicles with M Performance package or M Shadow Line with expanded scope |
P7MLA=Yes S7M9A=Yes |
|||||||||
| 12 | Tailpipe tip, black chrome | D=100MM | 2 | 18309488764 | Shop at ECS Tuning | |||||
| For vehicles with M Performance package and M Shadow Line with expanded scope |
P7MLA=No S7M9A=No |
|||||||||
| 12 | Tailpipe trim cerium gray | D=100MM | 2 | 18308695197 | Shop at ECS Tuning | |||||
