Catalytic converter/front silencer for BMW 8 Series G16 Gran Coupé 840dX (2024)

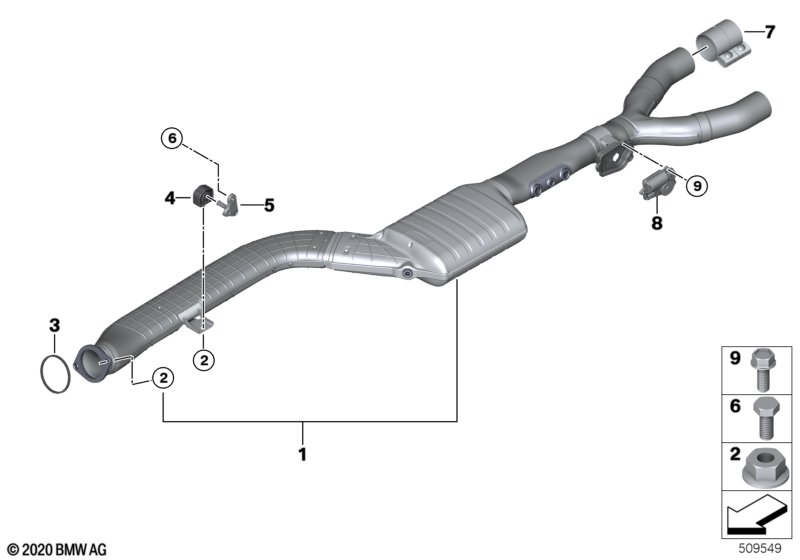

This Catalytic converter/front silencer technical drawing provides a detailed breakdown of the assembly for the 8 Series G16 Gran Coupé 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP SCR catalytic conv.w.exhaust flap | EU6 | 1 | 18308477769 | ENDED | Shop at ECS Tuning | ||||
| 01 | RP SCR catalytic conv.w.exhaust flap | EU6 | 1 | 18307102488 | NoS | Shop at ECS Tuning | ||||
| 02 | Collar nut | M8-8-SC-ZNNIV | 3 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 03 | Gasket | 1 | 18308572007 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Hex nut wiht flange | M8 | 2 | 18307620549 | Shop at ECS Tuning | |||||
| 04 | Transmission holder | 1 | 18208582034 | Shop at ECS Tuning | ||||||
| 05 | Rubber Mounting | 1 | 18208599519 | Shop at ECS Tuning | ||||||
| 06 | Hex bolt with washer | M8X18-U1-8.8 | 2 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 07 | Clamping bush | D=75 X 90MM | 2 | 18307560781 | $152.42 | Shop at ECS Tuning | ||||
| 08 | Actuator drive, exhaust flap | 1 | 18308582069 | ENDED | Shop at ECS Tuning | |||||
| 08 | Actuator drive, exhaust flap | 1 | 18307102452 | Shop at ECS Tuning | ||||||
| 09 | Hex bolt | M6X16 | 3 | 18308623584 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series G16 Gran Coupé 840dX Catalytic converter/front silencer?
- This technical diagram illustrates the Catalytic converter/front silencer within the Exhaust system group for the 8 Series G16 Gran Coupé 840dX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the RP SCR catalytic conv.w.exhaust flap (Part #18308477769).
- Which models use the hardware listed in this Catalytic converter/front silencer?
- The hardware and components featured in the Catalytic converter/front silencer are specific to the 8 Series G16 Gran Coupé 840dX produced during 2024. These technical specifications ensure that parts like the RP SCR catalytic conv.w.exhaust flap (18308477769) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Catalytic converter/front silencer assembly?
- Each item in the Catalytic converter/front silencer corresponds to the numbered list below the illustration. For the 8 Series G16 Gran Coupé 840dX, you can identify the RP SCR catalytic conv.w.exhaust flap by locating its position on the schematic, which then links to the official BMW part number 18308477769 for the Exhaust system section.
