Exhaust system, rear for BMW 3 Series G20 Sedan 320i (2019)

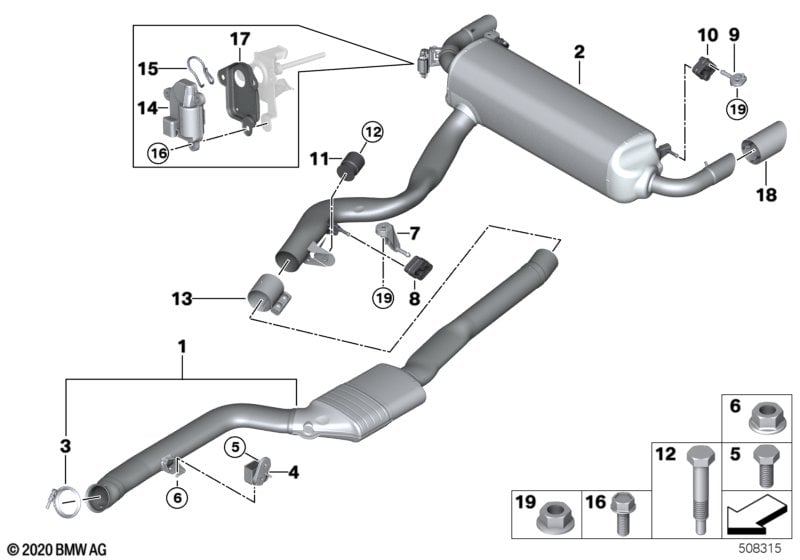

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP catalytic converter | EU6 | 1 | 18307933842 | Shop at ECS Tuning | |||||
| 02 | Rear muffler with exhaust flap | RDE | 1 | 18307933843 | Shop at ECS Tuning | |||||
| 03 | Screw clamp | D=80,0MM | 1 | 18305A09B63 | Shop at ECS Tuning | |||||
| 04 | Transmission holder | 1 | 18208683823 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt with washer | M8X18-U1-8.8 | 2 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M8 | 1 | 18307525607 | $1.62 | Shop at ECS Tuning | ||||
| 07 | Bracket exhaust, rear | 1 | 18307933856 | Shop at ECS Tuning | ||||||
| 08 | Rubber Mounting | 1 | 18208570671 | Shop at ECS Tuning | ||||||
| 09 | Bracket, resonator, rear left | 1 | 18307933854 | Shop at ECS Tuning | ||||||
| 09 | Bracket, resonator, rear right | 1 | 18307933855 | Shop at ECS Tuning | ||||||
| 10 | Swing support | 2 | 18308576996 | Shop at ECS Tuning | ||||||
| 11 | Vibration absorber | 40HZ | 1 | 18309468590 | Shop at ECS Tuning | |||||
| 12 | Collar screw | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 13 | Clamping bush | D=85 X 90MM | 1 | 18307560782 | $113.93 | Shop at ECS Tuning | ||||
| 14 | Actuator drive, exhaust flap | 1 | 18308686640 | Shop at ECS Tuning | ||||||
| 15 | Fixing bow | 1 | 18307620323 | Shop at ECS Tuning | ||||||
| 16 | Hex bolt | M6X16 | 3 | 18308623584 | Shop at ECS Tuning | |||||
| 17 | Thermal protection | 1 | 18307628041 | Shop at ECS Tuning | ||||||
| For vehicles with M Shadow Line with expanded scope |
S7M9A=Yes |
|||||||||
| 18 | Tailpipe tip, black chrome | D=90MM | 2 | 18308485758 | Shop at ECS Tuning | |||||
| For vehicles with M Shadow Line with expanded scope |
S7M9A=No |
|||||||||
| 18 | Tailpipe tip, chrome | D=90MM | 2 | 18308679075 | Shop at ECS Tuning | |||||
| 19 | Hex nut | M8-ZNS3 | 3 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
