Engine-side catalytic converter for BMW 3 Series G80 M3 M3 (2024)

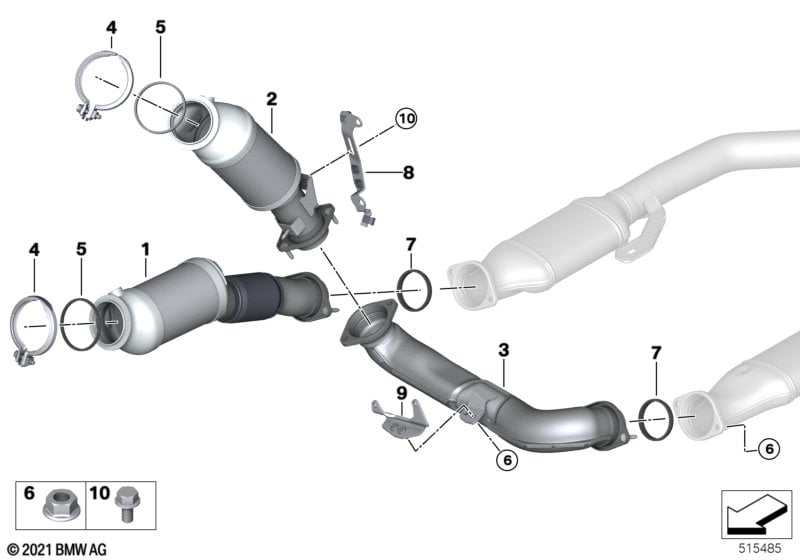

This Engine-side catalytic converter technical drawing provides a detailed breakdown of the assembly for the 3 Series G80 M3 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China and Emissions standard EU6 rde II and Exhaust emission standard JPN-WLTP 2024 |
L8AAA=No S1DFA=No S1DXA=No |
||||||||
| 01 | RP catalytic conv.close to the engine | CYL. 1-3 | 1 | 18329501471 | Shop at ECS Tuning | |||||
| 02 | RP catalytic conv.close to the engine | CYL. 4-6 | 1 | 18329501472 | Shop at ECS Tuning | |||||
| 03 | Intermediate pipe | 1 | 18328468990 | Shop at ECS Tuning | ||||||
| 04 | Screw clamp | D=108,4 | 2 | 11658585233 | Shop at ECS Tuning | |||||
| 05 | Gasket exh.turbocharger/cat.converter | 2 | 18307553601 | $18.21 | Shop at ECS Tuning | |||||
| 06 | Hexagon nut | M8-A2-70 | 9 | 07145A67B87 | Shop at ECS Tuning | |||||
| 07 | Gasket | D=70MM | 3 | 18308053348 | Shop at ECS Tuning | |||||
| 08 | Holder catalytic converter near engine | 1 | 18328468992 | Shop at ECS Tuning | ||||||
| 09 | Transmission holder | 1 | 18328468991 | Shop at ECS Tuning | ||||||
| 10 | Hex bolt with washer | M8X20-U1-8.8 | 1 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G80 M3 M3 Engine-side catalytic converter?
- This technical diagram illustrates the Engine-side catalytic converter within the Exhaust system group for the 3 Series G80 M3 M3 produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the RP catalytic conv.close to the engine (Part #18329501471).
- Which models use the hardware listed in this Engine-side catalytic converter?
- The hardware and components featured in the Engine-side catalytic converter are specific to the 3 Series G80 M3 M3 produced during 2024. These technical specifications ensure that parts like the RP catalytic conv.close to the engine (18329501471) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine-side catalytic converter assembly?
- Each item in the Engine-side catalytic converter corresponds to the numbered list below the illustration. For the 3 Series G80 M3 M3, you can identify the RP catalytic conv.close to the engine by locating its position on the schematic, which then links to the official BMW part number 18329501471 for the Exhaust system section.
