Exhaust system, rear for BMW MINI F56 LCI JCW (2024)

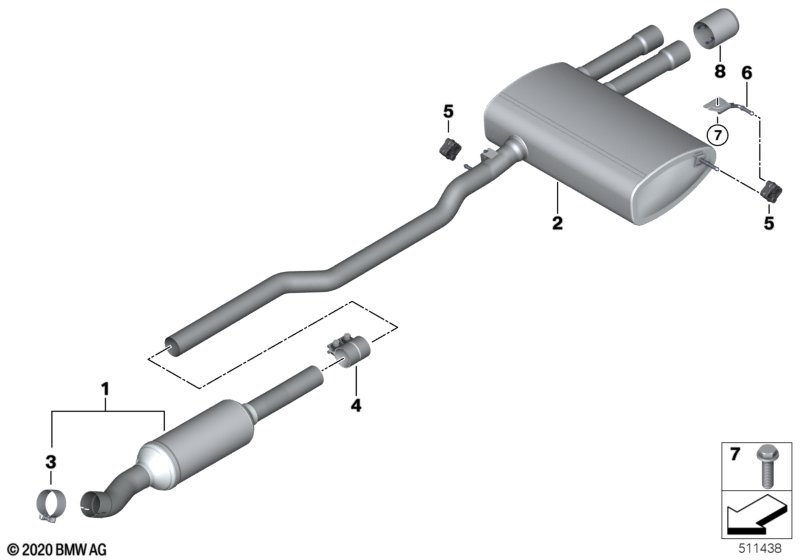

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China and Exhaust technology C6B RDE and Emissions standard EU6 rde II and Emission standard BHARAT STAGE VI RDE |
L8AAA=No S1DDA=No S1DFA=No S1DMA=No |
||||||||
| 01 | Front muffler | 1 | 11/2021 | 18309845446 | Shop at ECS Tuning | |||||
| 02 | Rear muffler | 1 | 11/2021 | 18309797970 | Shop at ECS Tuning | |||||
| 03 | Muffler clamp | D=72 X 37MM | 1 | 11/2021 | 18308632362 | Shop at ECS Tuning | ||||
| 04 | Clamping bush | D=60 X 70MM | 1 | 11/2021 | 18307560779 | $34.61 | Shop at ECS Tuning | |||
| 05 | Rubber Mounting | 2 | 11/2021 | 18307616850 | Shop at ECS Tuning | |||||
| 06 | Bracket for rear silencer, left | 1 | 11/2021 | 18308603283 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M12X45 | 1 | 11/2021 | 07147284229 | Shop at ECS Tuning | ||||
| For vehicles with Piano black exterieur |
S3L2A=Yes |
|||||||||
| 08 | Tailpipe tip, black chrome | D=90MM | 2 | 18309455546 | Shop at ECS Tuning | |||||
| For vehicles with Piano black exterieur |
S3L2A=No |
|||||||||
| 08 | Exhaust pipe tip, high-gloss chrome | 2 | 18308654203 | Shop at ECS Tuning | ||||||
