Exhaust system, rear for BMW MINI F56 LCI JCW (2024)

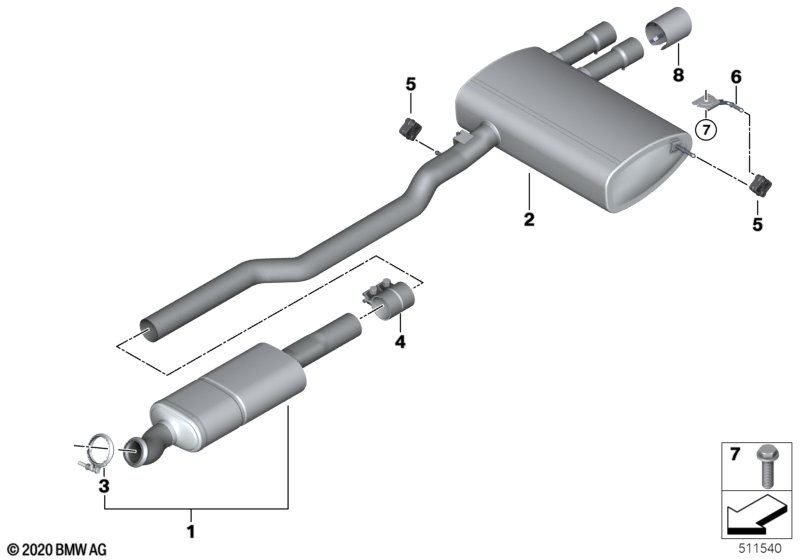

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Emissions standard EU6 rde II |
S1DFA=Yes |
||||||||
| 01 | RP gas.particulate filter w.front pipe | RDE II | 1 | 18309796636 | Shop at ECS Tuning | |||||
| 02 | Rear muffler | 1 | 18309797974 | Shop at ECS Tuning | ||||||
| 03 | Screw clamp | D=70MM | 1 | 18305A04BD6 | Shop at ECS Tuning | |||||
| 04 | Clamping bush | D=70 X 70MM | 1 | 18307560780 | $60.54 | Shop at ECS Tuning | ||||
| 05 | Rubber Mounting | 2 | 18307616850 | Shop at ECS Tuning | ||||||
| 06 | Bracket for rear silencer, left | 1 | 18308603283 | Shop at ECS Tuning | ||||||
| 07 | Hex bolt | M12X45 | 1 | 07147284229 | Shop at ECS Tuning | |||||
| 08 | Tailpipe tip, chrome | 2 | 18308615860 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 LCI JCW Exhaust system, rear?
- This technical diagram illustrates the Exhaust system, rear within the Exhaust system group for the MINI F56 LCI JCW produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the RP gas.particulate filter w.front pipe (Part #18309796636).
- Which models use the hardware listed in this Exhaust system, rear?
- The hardware and components featured in the Exhaust system, rear are specific to the MINI F56 LCI JCW produced during 2024. These technical specifications ensure that parts like the RP gas.particulate filter w.front pipe (18309796636) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust system, rear assembly?
- Each item in the Exhaust system, rear corresponds to the numbered list below the illustration. For the MINI F56 LCI JCW, you can identify the RP gas.particulate filter w.front pipe by locating its position on the schematic, which then links to the official BMW part number 18309796636 for the Exhaust system section.
