Lambda Probe Fixings for BMW 2 Series U06 Active Tourer 225eX (2025)

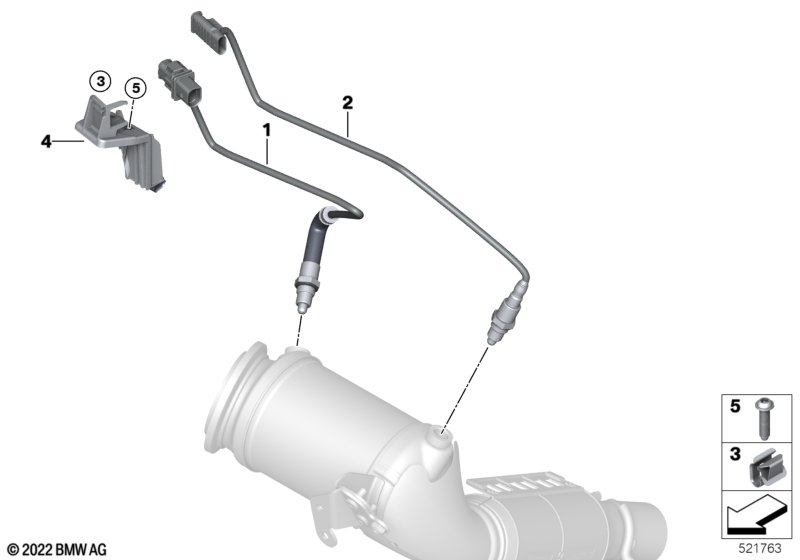

This Lambda Probe Fixings technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 225eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Regulating lambda probe | 1 | 11788686977 | Shop at ECS Tuning | ||||||
| 02 | Lambda Monitor sensor | 1 | 11788686978 | Shop at ECS Tuning | ||||||
| 03 | Clip | 2 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| 04 | Lambda-probe bracket | 1 | 11785A16658 | Shop at ECS Tuning | ||||||
| 05 | Fillister head screw | 1 | 07149272649 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series U06 Active Tourer 225eX Lambda Probe Fixings?
- This technical diagram illustrates the Lambda Probe Fixings within the Exhaust system group for the 2 Series U06 Active Tourer 225eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Regulating lambda probe (Part #11788686977).
- Which models use the hardware listed in this Lambda Probe Fixings?
- The hardware and components featured in the Lambda Probe Fixings are specific to the 2 Series U06 Active Tourer 225eX produced during 2025. These technical specifications ensure that parts like the Regulating lambda probe (11788686977) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lambda Probe Fixings assembly?
- Each item in the Lambda Probe Fixings corresponds to the numbered list below the illustration. For the 2 Series U06 Active Tourer 225eX, you can identify the Regulating lambda probe by locating its position on the schematic, which then links to the official BMW part number 11788686977 for the Exhaust system section.
