Catalytic converter/front silencer for BMW 7 Series G70 750eX (2024)

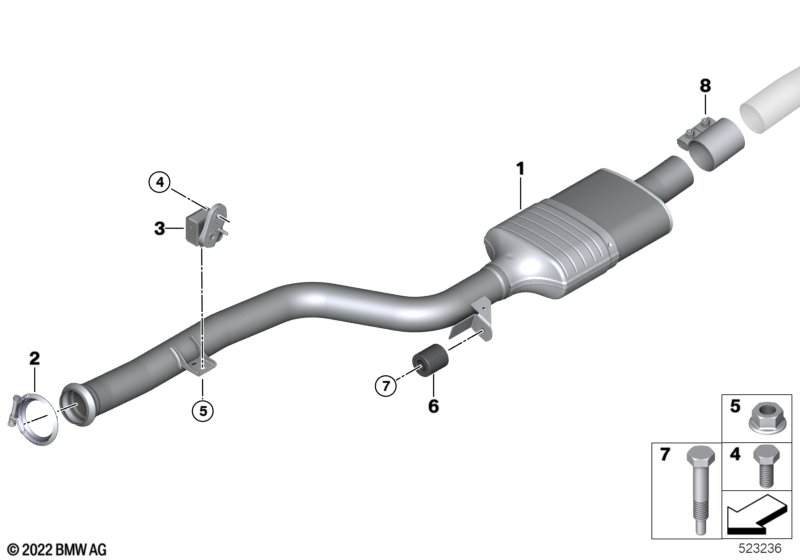

This Catalytic converter/front silencer technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 750eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Exhaust technology C6B RDE or Emissions standard EU6 rde II |
S1DDA=Yes S1DFA=Yes |
||||||||
| 01 | Front muffler | 1 | 18305A2C2B2 | Shop at ECS Tuning | ||||||
| 02 | Screw clamp | D=80,0MM | 1 | 18305A09B63 | Shop at ECS Tuning | |||||
| 03 | Transmission holder | 1 | 18207561641 | Shop at ECS Tuning | ||||||
| 04 | Hex bolt with washer | M6X16-U1-8.8 | 3 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Hexagon nut | M8-A2-70 | 1 | 07145A67B87 | Shop at ECS Tuning | |||||
| 06 | Vibration absorber | 109HZ | 1 | 18305A2D569 | Shop at ECS Tuning | |||||
| 07 | Collar screw | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 08 | Clamping bush | D=75 X 90MM | 1 | 18307560781 | $152.42 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 750eX Catalytic converter/front silencer?
- This technical diagram illustrates the Catalytic converter/front silencer within the Exhaust system group for the 7 Series G70 750eX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Front muffler (Part #18305A2C2B2).
- Which models use the hardware listed in this Catalytic converter/front silencer?
- The hardware and components featured in the Catalytic converter/front silencer are specific to the 7 Series G70 750eX produced during 2024. These technical specifications ensure that parts like the Front muffler (18305A2C2B2) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Catalytic converter/front silencer assembly?
- Each item in the Catalytic converter/front silencer corresponds to the numbered list below the illustration. For the 7 Series G70 750eX, you can identify the Front muffler by locating its position on the schematic, which then links to the official BMW part number 18305A2C2B2 for the Exhaust system section.
