Exhaust system, rear for BMW 7 Series G70 M760eX (2025)

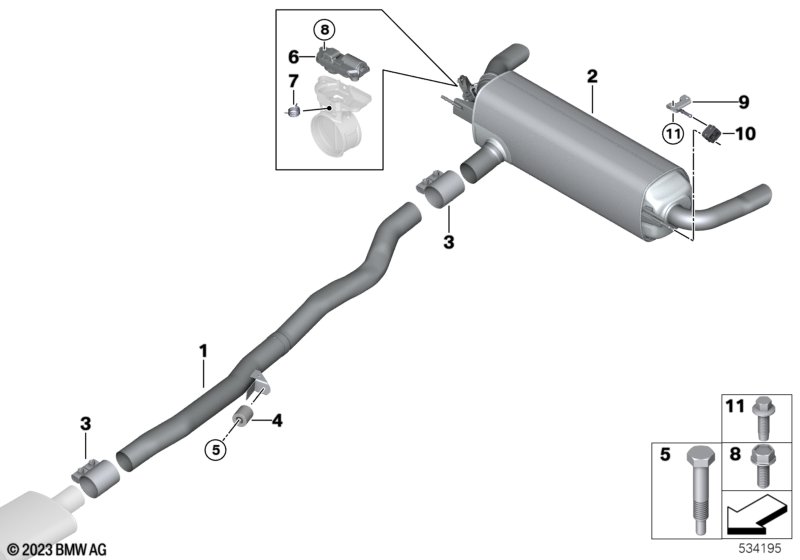

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 M760eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Exhaust technology C6B RDE and Emissions standard EU6 rde II |
S1DDA=No S1DFA=No |
||||||||
| 01 | Zwischenrohr mitte | 1 | 18305A2C2C1 | Shop at ECS Tuning | ||||||
| 02 | Rear silencer | 1 | 18305A2C2C0 | Shop at ECS Tuning | ||||||
| 03 | Clamping bush | D=80 X 90MM | 1 | 18307560815 | Shop at ECS Tuning | |||||
| 04 | Vibration absorber | 50 HZ | 1 | 18305A2BBF6 | Shop at ECS Tuning | |||||
| 05 | Collar screw | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 06 | Actuator drive, exhaust flap | 1 | 18305A20EA4 | Shop at ECS Tuning | ||||||
| 07 | Connection spring | 1 | 18308472303 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt | M6X16 | 2 | 18308623584 | Shop at ECS Tuning | |||||
| 09 | REAR SILENCER BRACKET, front | 2 | 18308635586 | Shop at ECS Tuning | ||||||
| 10 | Swing support | 2 | 18308635587 | Shop at ECS Tuning | ||||||
| 11 | Collar nut | M8-8-SC-ZNNIV | 4 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 M760eX Exhaust system, rear?
- This technical diagram illustrates the Exhaust system, rear within the Exhaust system group for the 7 Series G70 M760eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Zwischenrohr mitte (Part #18305A2C2C1).
- Which models use the hardware listed in this Exhaust system, rear?
- The hardware and components featured in the Exhaust system, rear are specific to the 7 Series G70 M760eX produced during 2025. These technical specifications ensure that parts like the Zwischenrohr mitte (18305A2C2C1) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust system, rear assembly?
- Each item in the Exhaust system, rear corresponds to the numbered list below the illustration. For the 7 Series G70 M760eX, you can identify the Zwischenrohr mitte by locating its position on the schematic, which then links to the official BMW part number 18305A2C2C1 for the Exhaust system section.
